Lexmark MS821

2100-sheet tray rails removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.

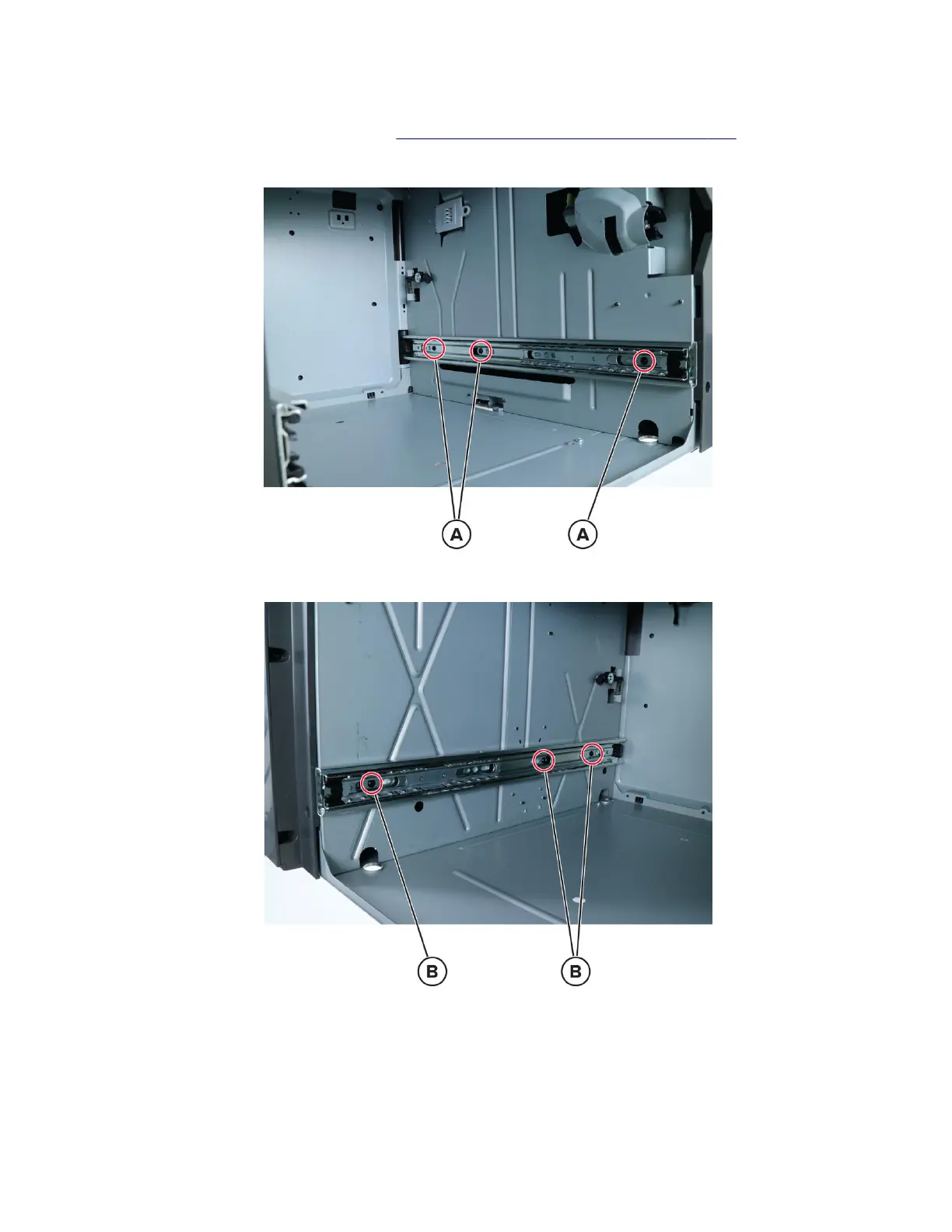

2 Remove the three screws (A) from the inner right side of the tray.
3 Remove the three screws (B) from the inner left side of the tray.
4 Remove the rails.
4064
Parts removal
489
