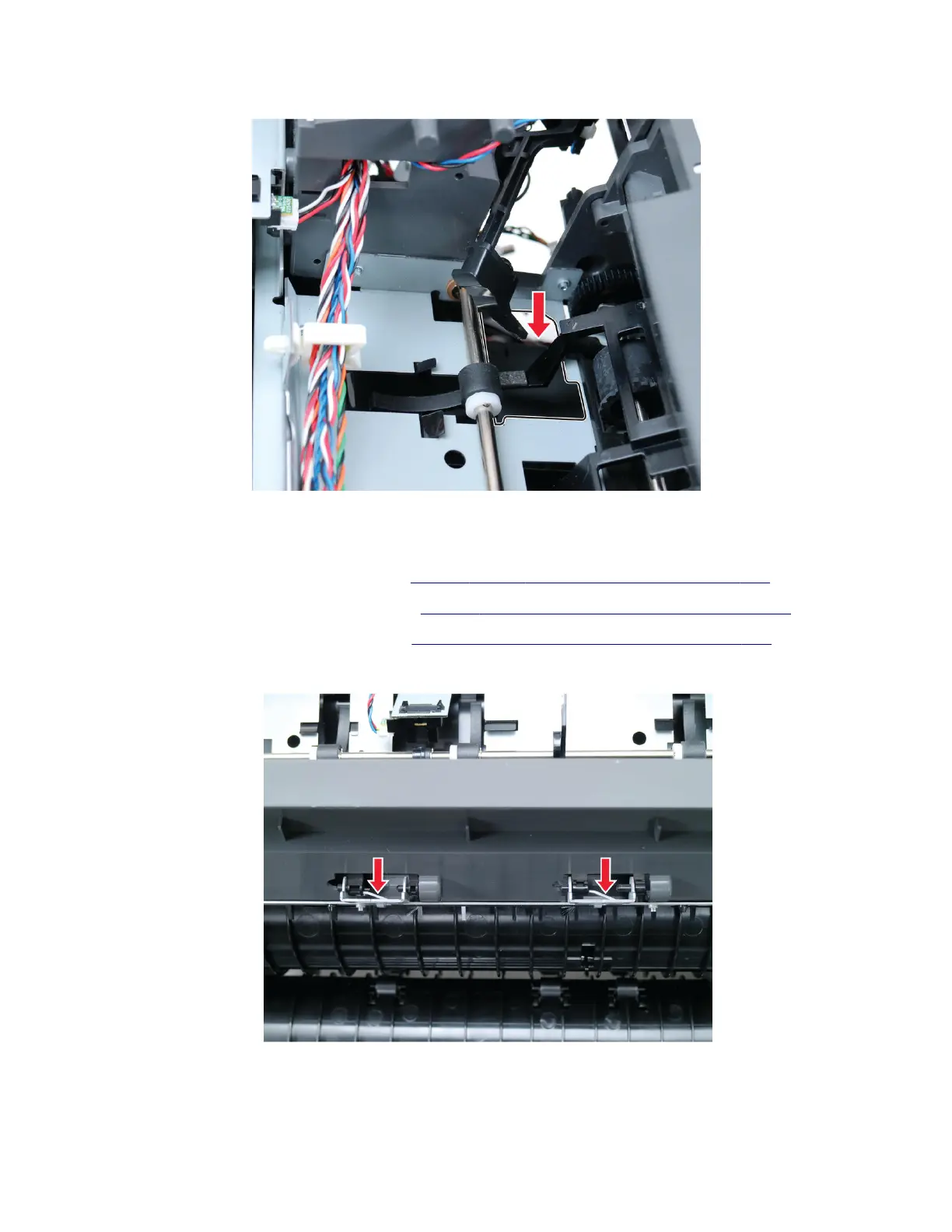

Installation note: Make sure that the stack height actuator is inserted properly.
Staple finisher paper stack flap removal
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple finisher top cover. See “Staple finisher top cover removal” on page 588.
4 Press the two locks to release the flap hinges.
5 Remove the flap.
