Lexmark MS821

Output expander drive belt removal
1 Remove the output expander right cover. See “Output expander right cover removal” on page 520.

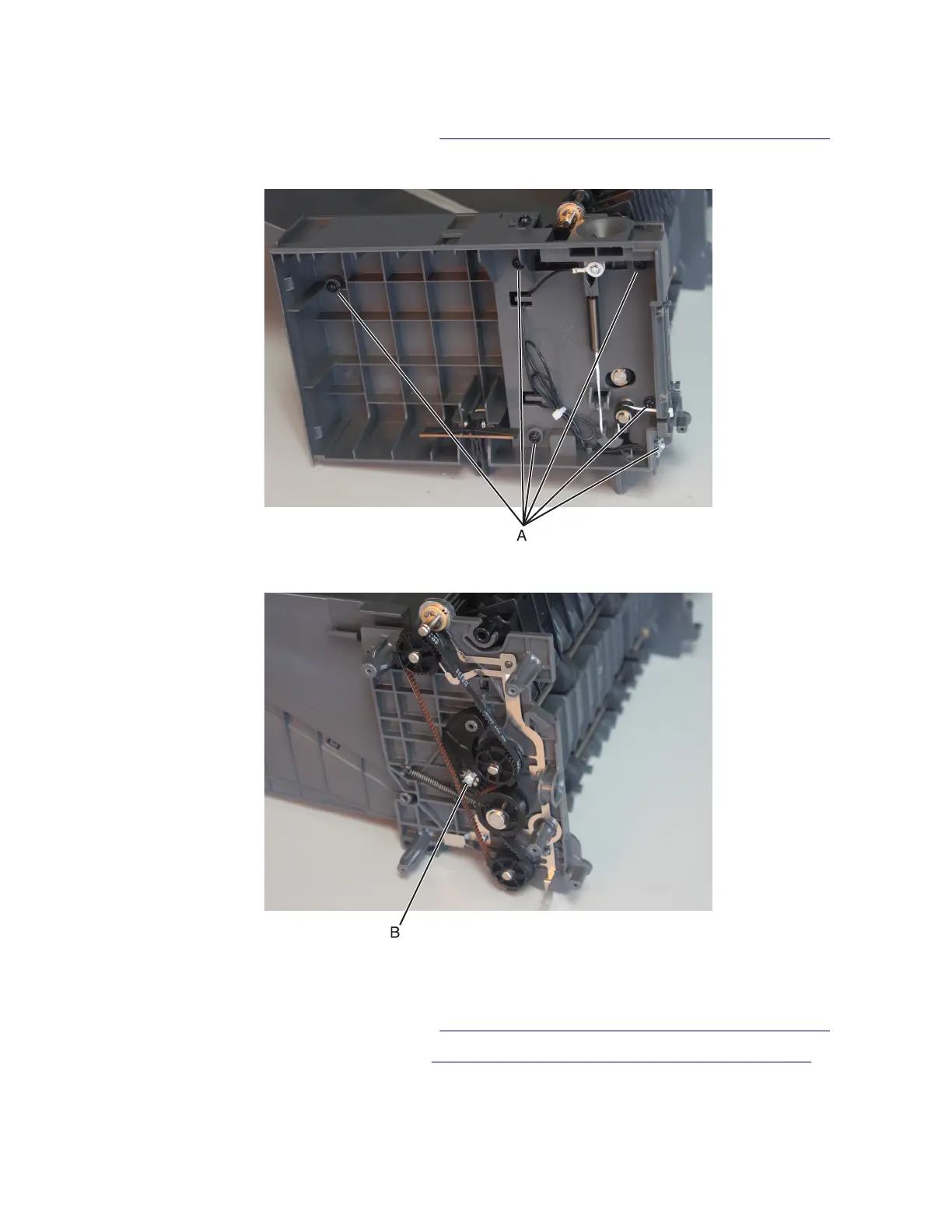

2 Remove the six screws (A) securing the frame. Pull away the frame, and remove.
3 Loosen the screw (B) to unlock and allow more slack on the mechanism, and then remove the belt.
Output expander belt tensioner removal
1 Remove the output expander right cover. See “Output expander right cover removal” on page 520.
2 Remove the output expander drive belt. See “Output expander drive belt removal” on page 540.
3 Remove the screw (A) from the tensioner.
