Rear cover removal
1 Remove the rear door. See “Rear door removal” on page 449.

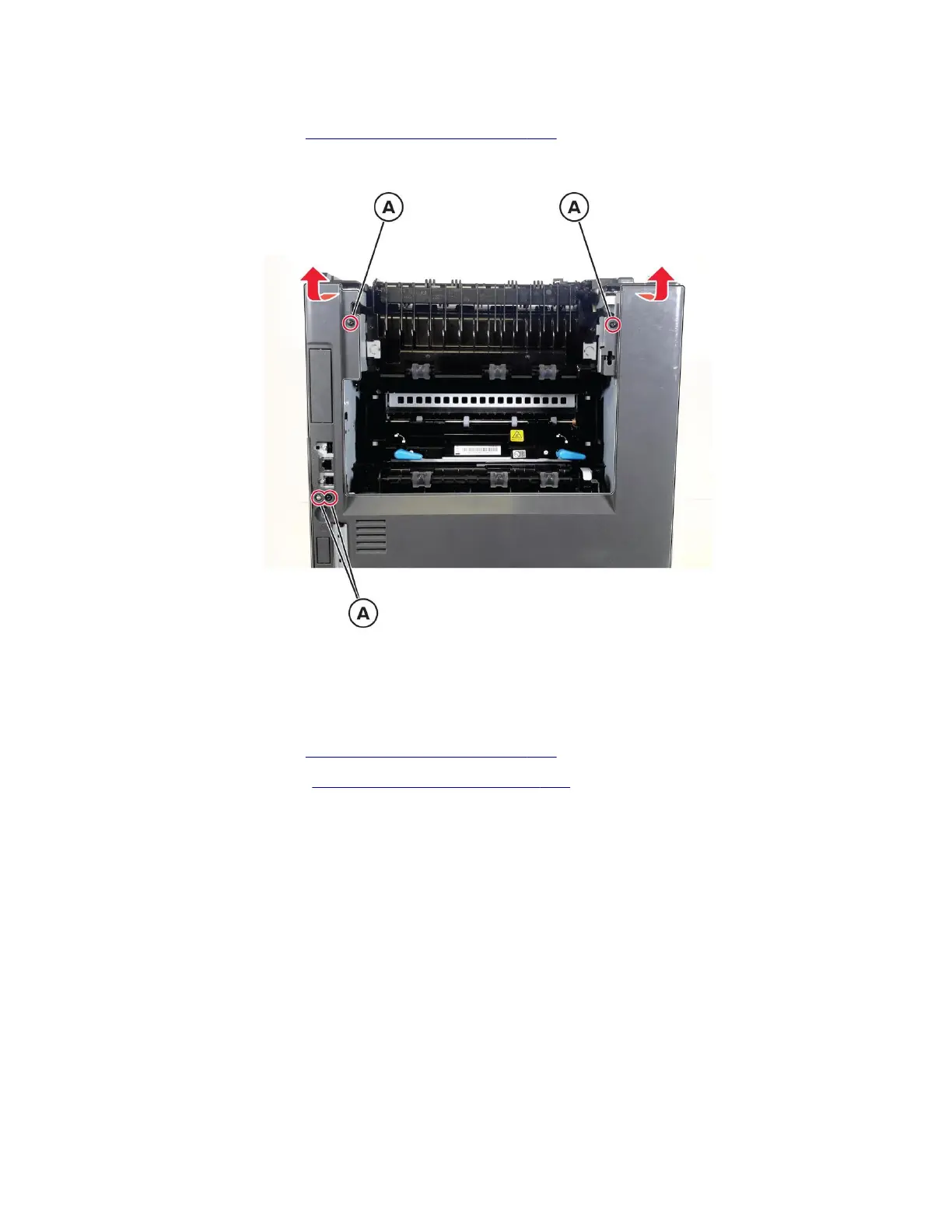

2 Remove the four screws (A).
3 Gently pull the top and middle section of the cover to release, and then remove the cover.
Motor (duplex) removal
1 Remove the rear door. See “Rear door removal” on page 449.
2 Remove the rear cover. See “Rear cover removal” on page 450.
3 Disconnect the cable (A), and then release it from its holder (B).
4064
Parts removal
450
