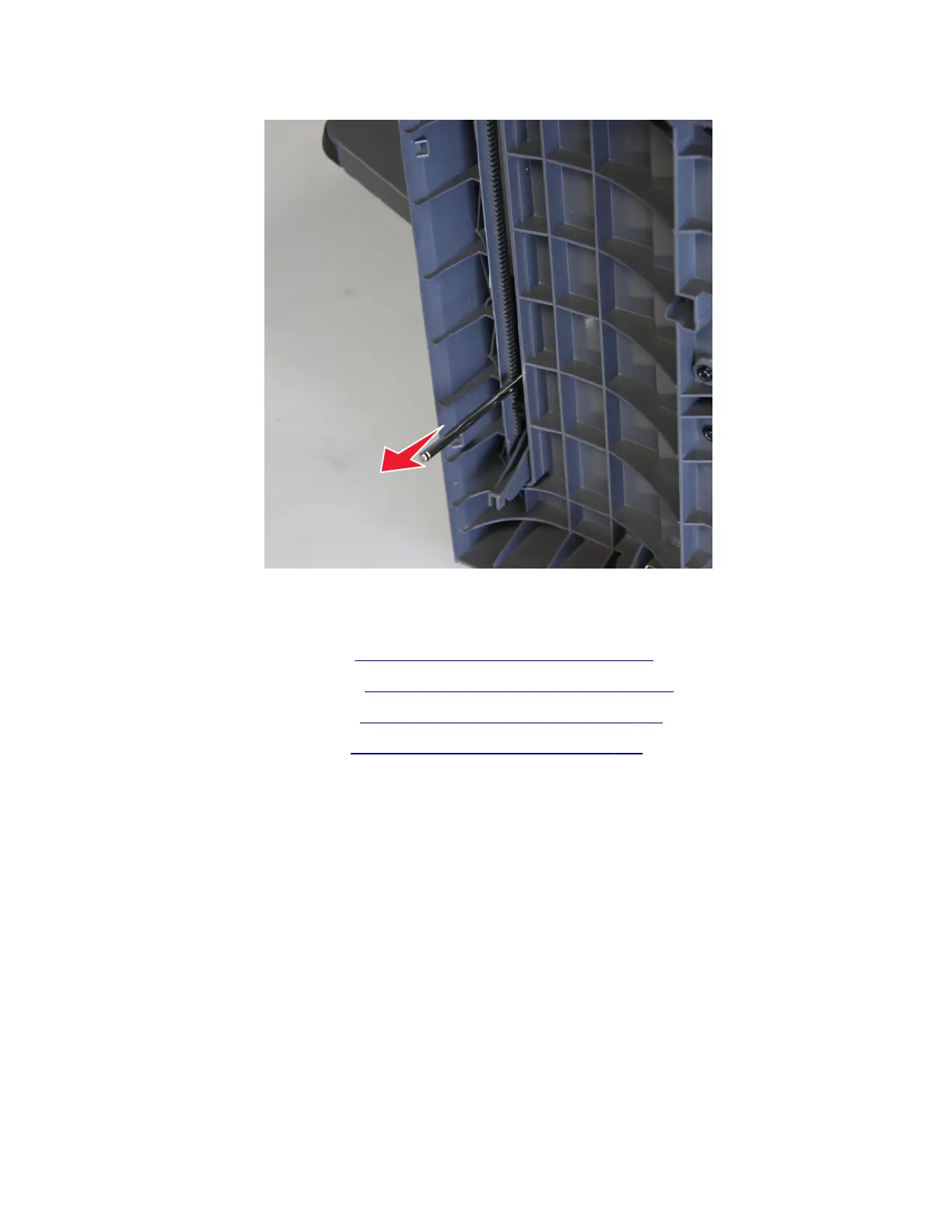

4 Pull the shaft o the bin, and remove.
HCOE bin removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
2 Remove the HCOE right cover. See “HCOE right cover removal” on page 549.
3 Remove the HCOE bin pinion. See “HCOE bin pinion removal” on page 558.
4 Remove the HCOE bin shaft. See “HCOE bin shaft removal” on page 574.
5 Disconnect the cable J10 from the controller board.
