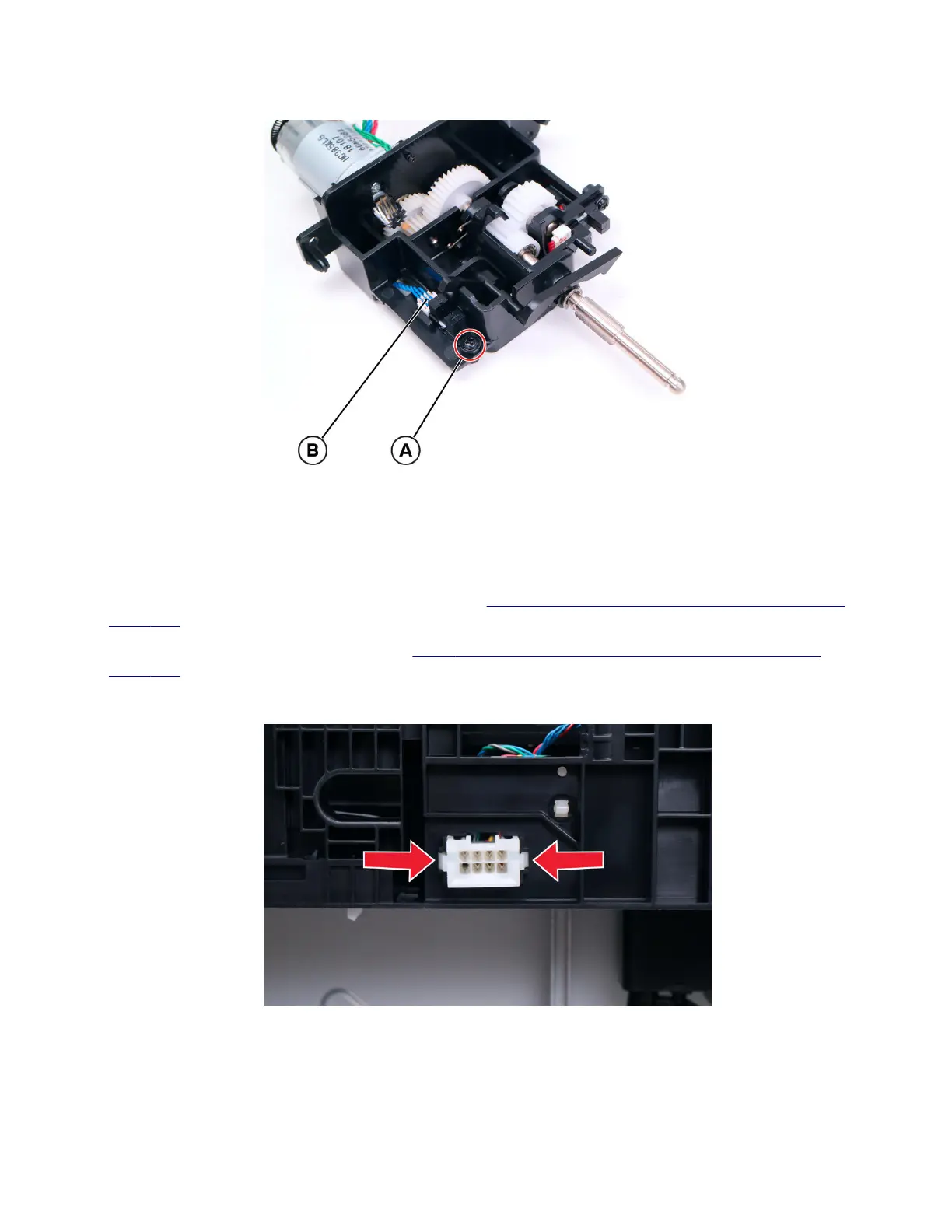

5 Remove the screw (A), and then disconnect the sensor cable (B).
6 Remove the sensor.
250‑ and 550-sheet tray interface cable removal
1 Remove the 250‑ and 550-sheet tray left cover. See “250‑ and 550-sheet tray left cover removal” on
page 496.
2 Release the controller board bracket. See “250‑ and 550-sheet tray controller board removal” on
page 506.
3 Press the latches to release, and then dislodge the connector from the bottom side.
4064
Parts removal
510
