Motor (OE diverter) removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.

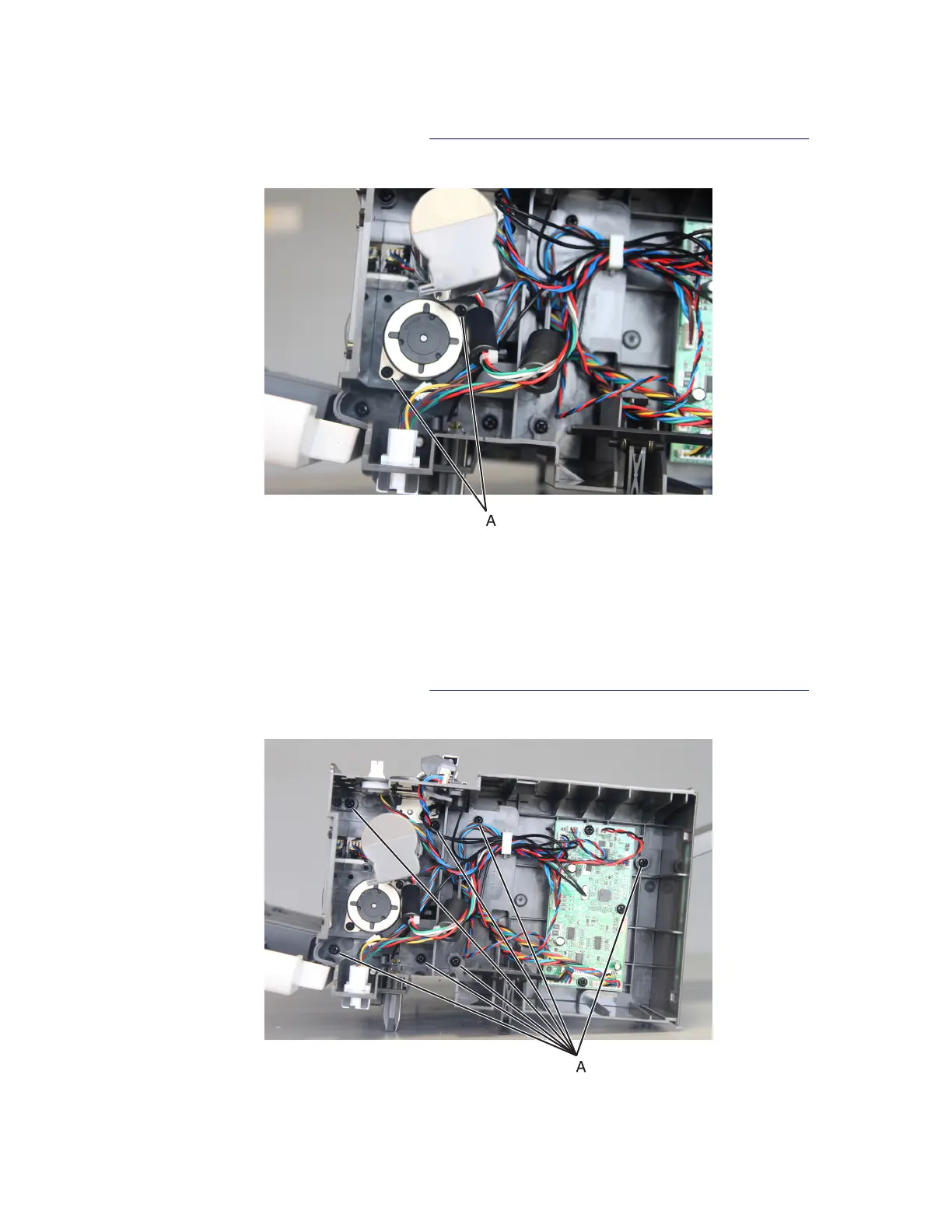

2 Disconnect the motor cable, and then remove the two screws (A).
3 Remove the motor.
Output expander diverter plunger assembly removal
Diverter plunger removal
1
Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A) from the frame.
4064
Parts removal
529
