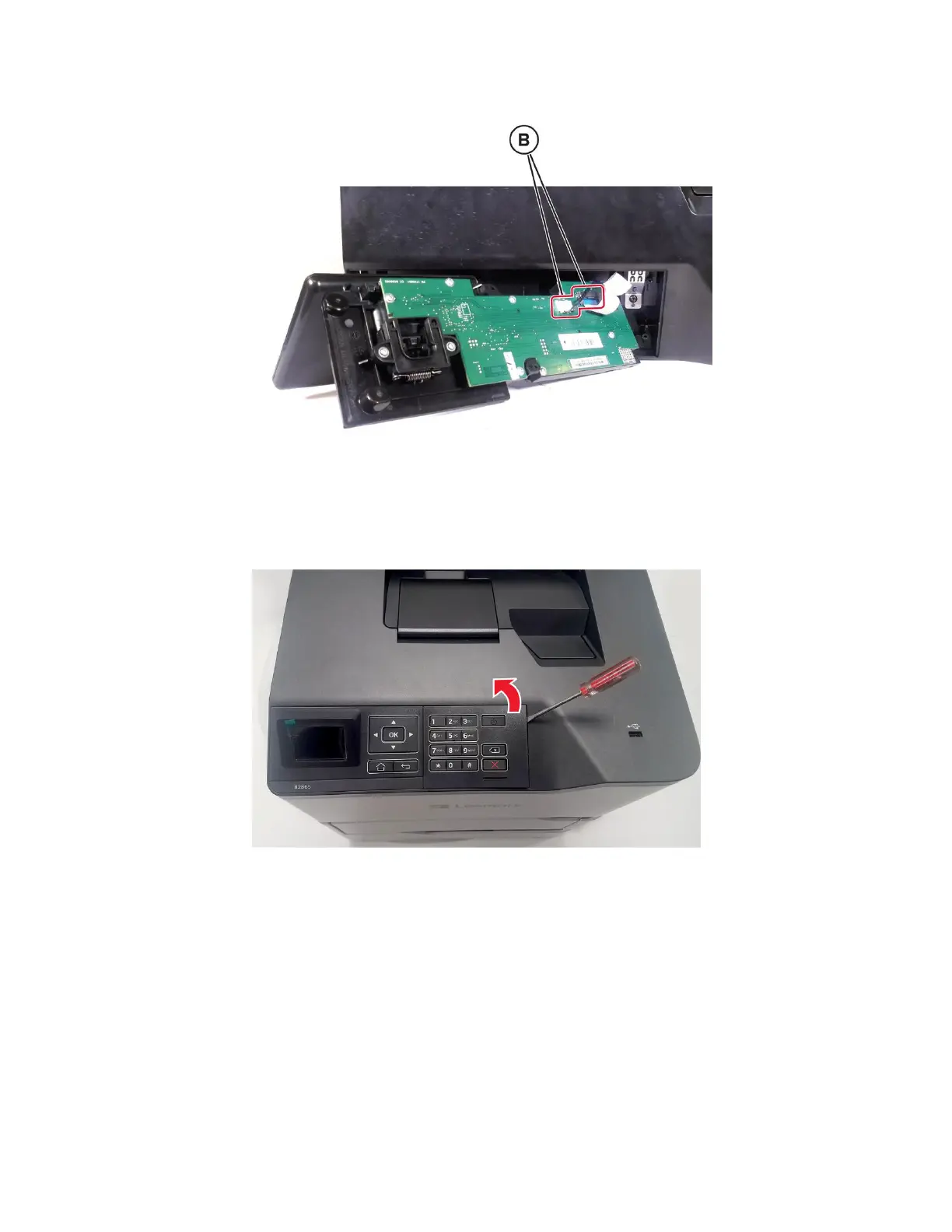

4 Disconnect the two cables (B), and then remove the control panel.
Control panel (2.4inch) cover removal
Pry the cover to release, and then remove it.
Control panel (2.4-inch) board and display removal
Critical information for controller board or control panel replacement
Warning—Potential Damage: Replace only one of the following components at a time:
Control panel
Controller board
4064
Parts removal
444
