Lexmark MS821

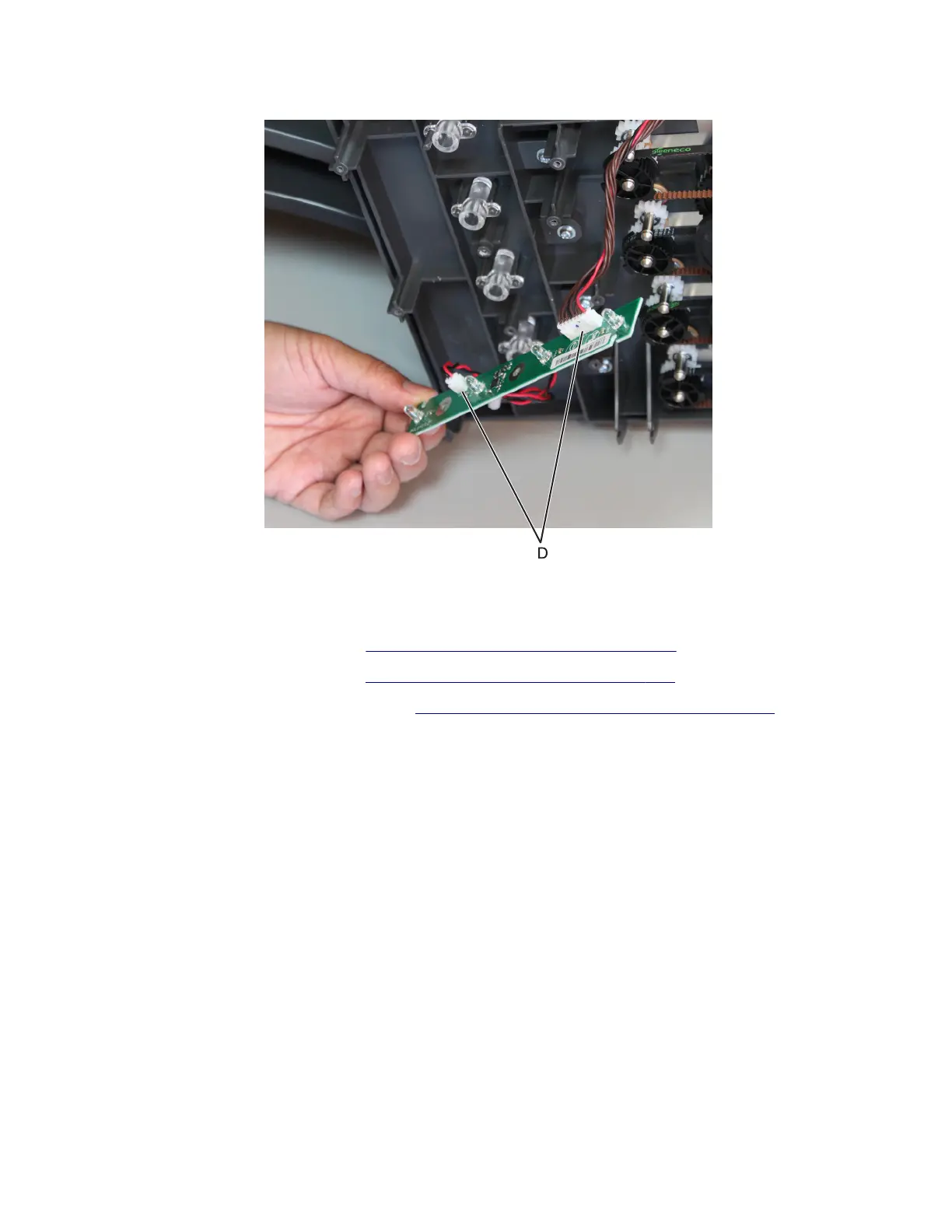

8 Disconnect the two cables (D), and then remove the bin LED assembly.
Mailbox top diverter removal
1 Remove the mailbox left cover. See “Mailbox left cover removal” on page 654.
2 Remove the mailbox rear door. See “Mailbox rear door removal” on page 649.
3 Remove the mailbox controller board. See “Mailbox controller board removal” on page 667.
4064
Parts removal
683
