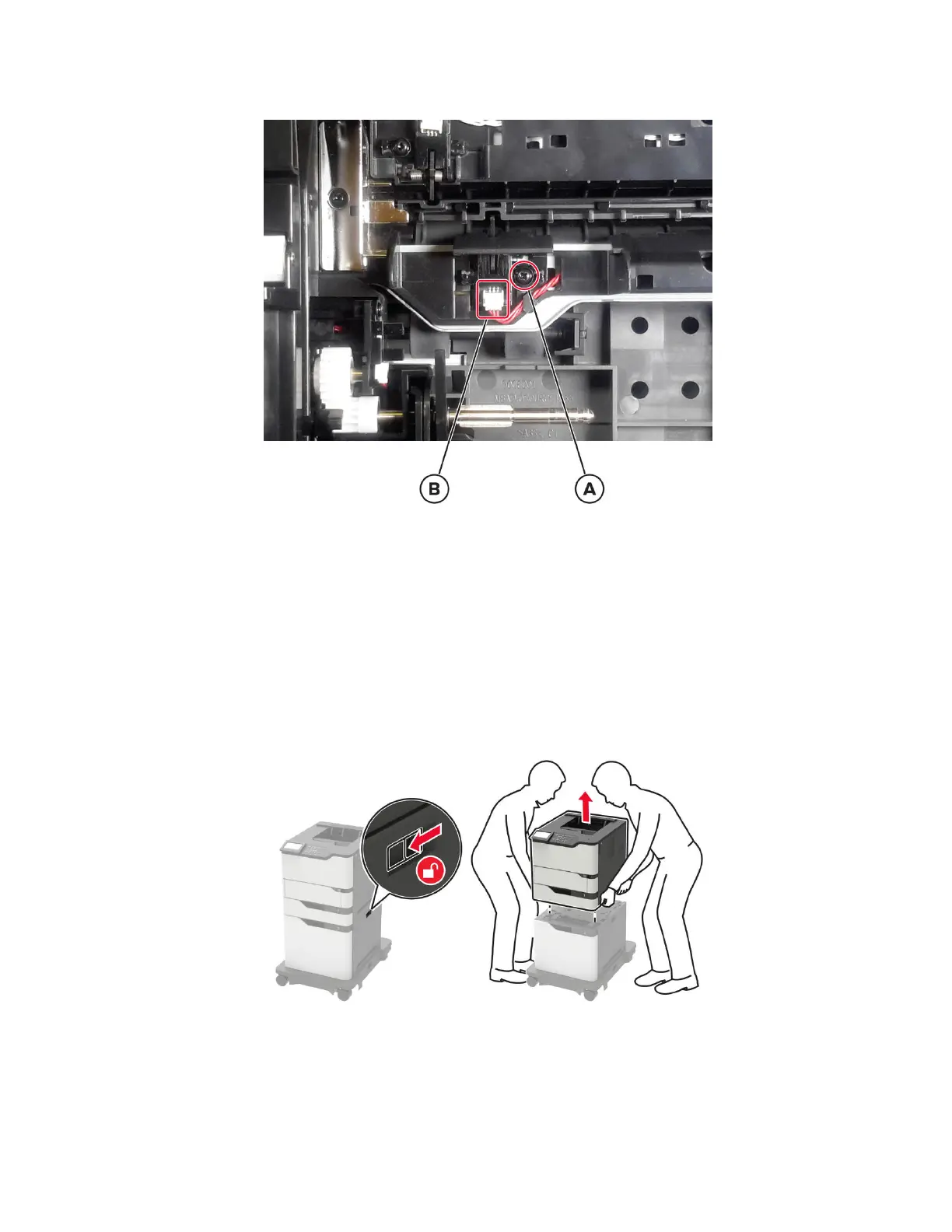

4 Remove the screw (A), and then disconnect the sensor cable (B).
5 Remove the sensor.
Optional 2100-sheet tray removals
Optional 2100‑sheet tray removal
1 Press the latch to unlock.
2 Lift the printer or optional tray above the 2100‑sheet tray, and then separate the 2100‑sheet tray.
4064
Parts removal
470
