The transport rollers and exit roller along the paper path move the paper depending on the destination bin
assigned for the print job. The motor (transport) drives both the transport and exit rollers.
Optional mailbox operation

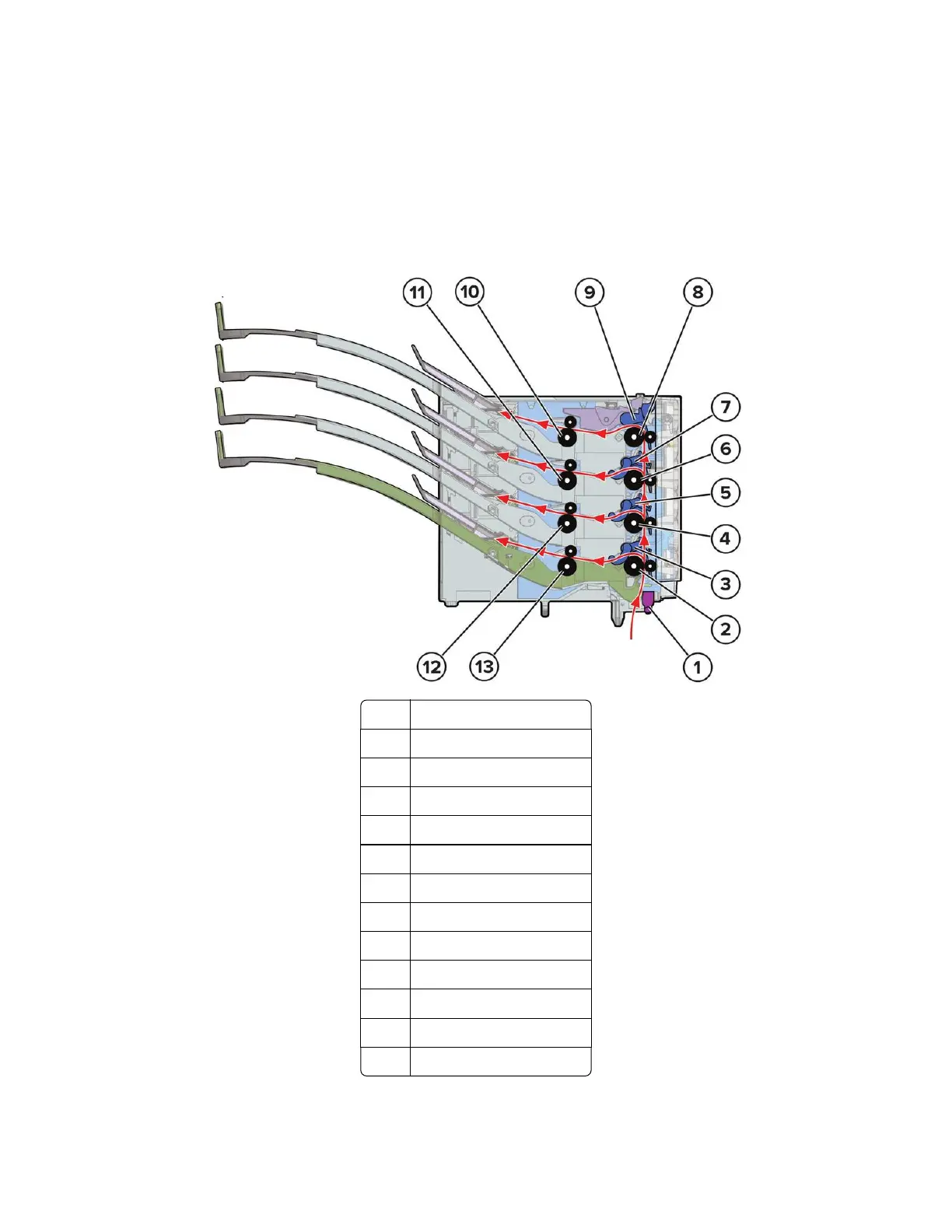

Mailbox paper path rollers
1 Diverter plunger
2 Mailbox transport roller 1
3 Diverter 1
4 Mailbox transport roller 2
5 Diverter 2
6 Mailbox transport roller 3
7 Diverter 3
8 Mailbox transport roller 4
9 Diverter 4
10 Exit roller 4
11 Exit roller 3
12 Exit roller 2
13 Exit roller 1
