Upper redrive removal
1 Remove the top cover. See “Top cover removal” on page 455.
2 Open the rear door.

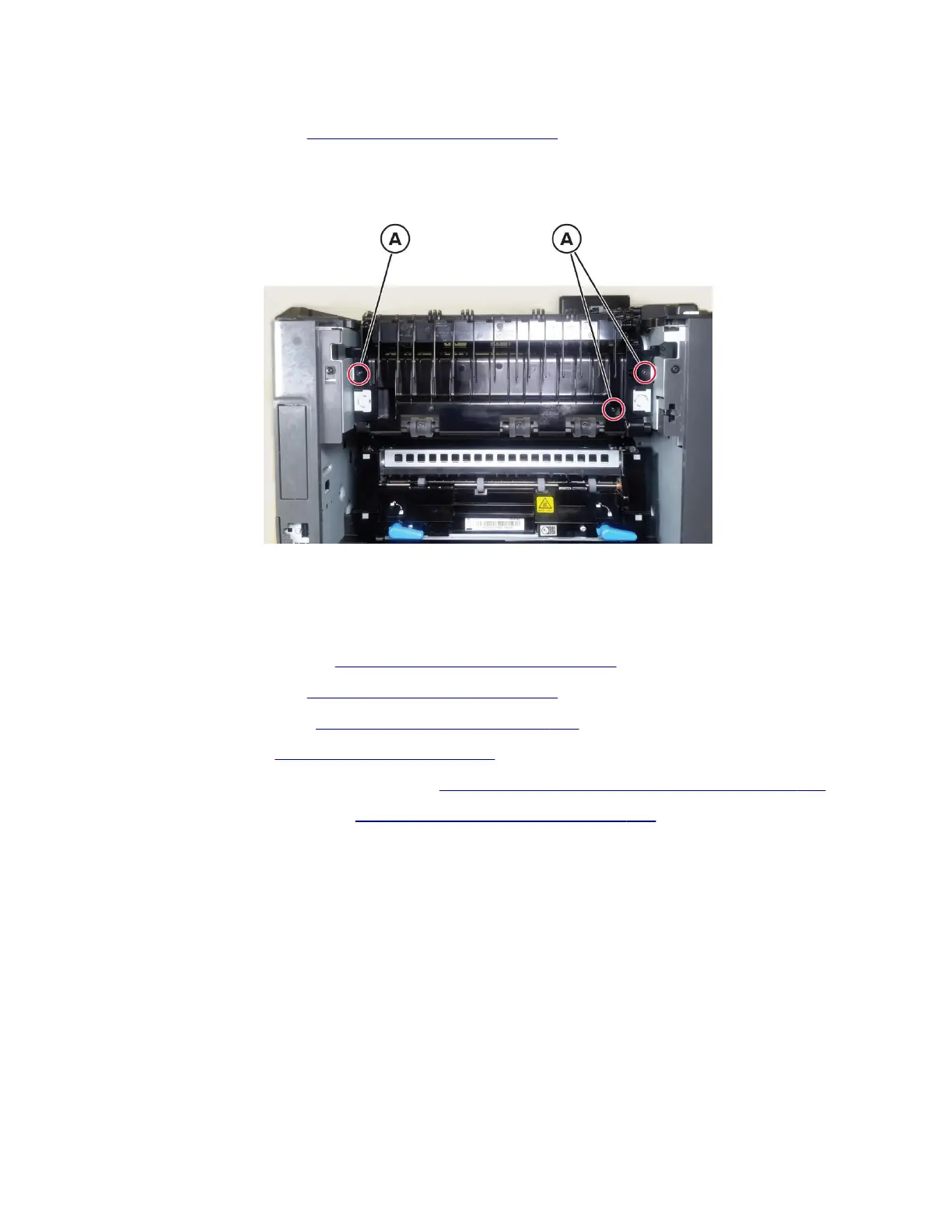

3 Remove the three screws (A), and then remove the upper redrive.
Transfer roller contact removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the transfer roller. See “Transfer roller removal” on page 447.
3 Remove the top cover. See “Top cover removal” on page 455.
4 Remove the right cover. See “Right cover removal” on page 420.
5 Remove the fuser. See “Fuser removal” on page 452.
6 Remove the high voltage contacts guide. See “High voltage contacts guide removal” on page 427.
7 Remove the controller board. See “Controller board removal” on page 424.
