SF bin section

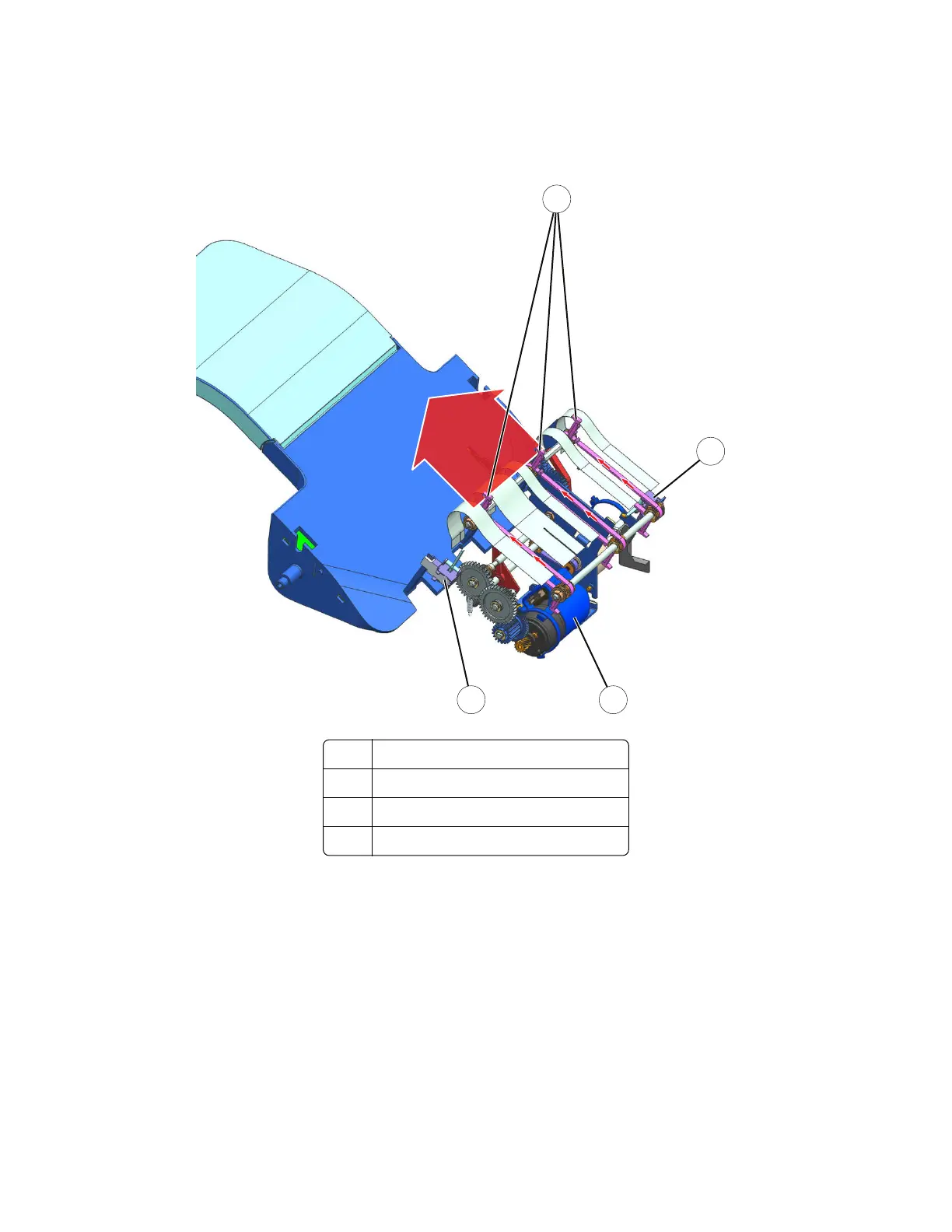

Ejector drive
4
3
2
1
1 Ejector paddles
2 Sensor (staple throat paper present)
3 Sensor (staple finisher ejector)
4 Motor (staple finisher ejector)
After the paper stack is stapled, the ejector paddles that are connected to a belt push the stack toward the bin.
The motor (SF ejector) drives the ejector belt. The sensor (SF ejector) detects the ejector belt at its home
position.
4064
Theory of operation
922
