Motor (HPU carriage) removal
1 Remove the staple, hole punch
finisher
right cover. See “Staple, hole punch
finisher
right cover removal”
on page 701.

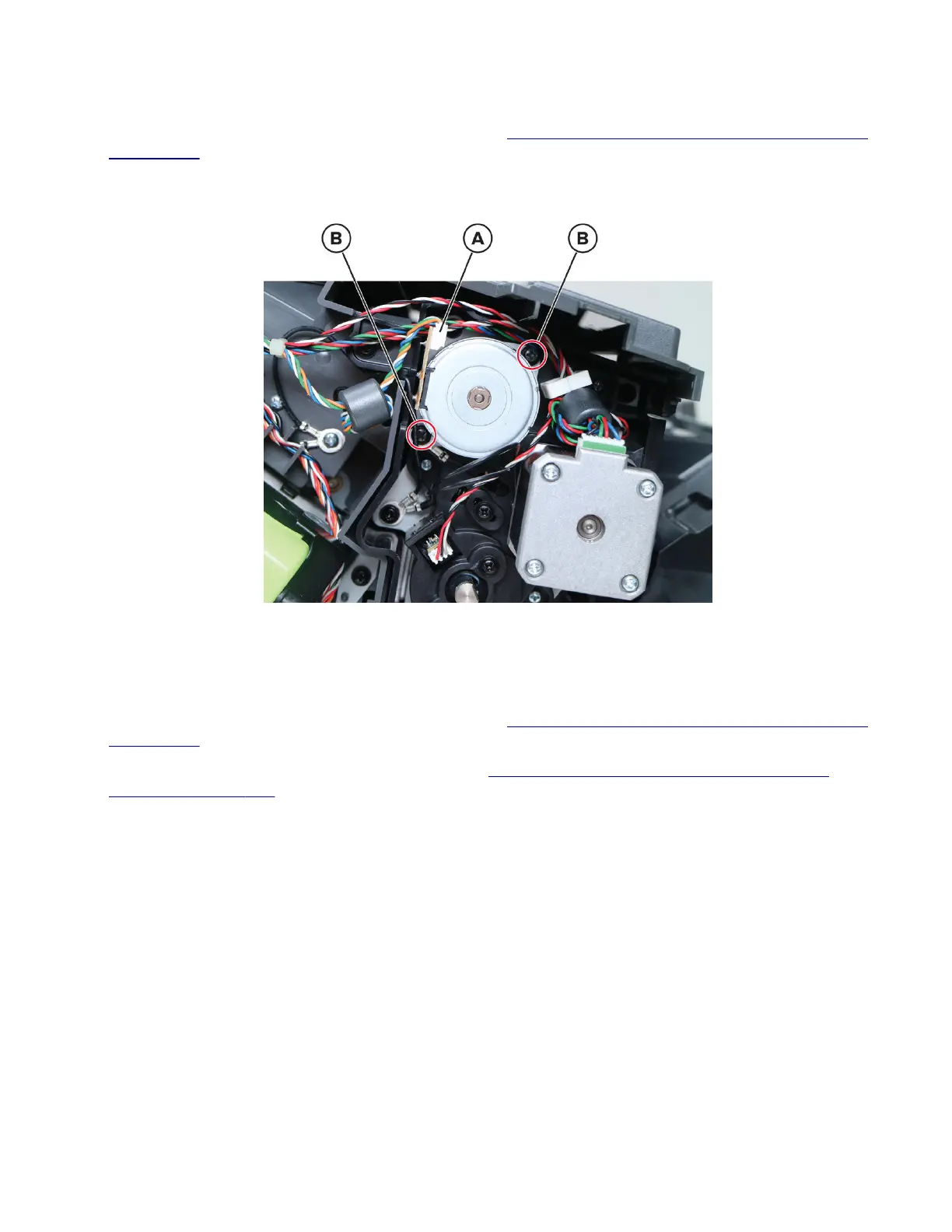

2 Disconnect the cable (A), and then remove the two screws (B).
3 Remove the motor.
Right staple unit removal
1 Remove the staple, hole punch finisher right cover. See “Staple, hole punch finisher right cover removal”
on page 701.
2 Release the right stapler door close limit switch. See “SHPF staple cartridge door close limit switch
removal” on page 706.
