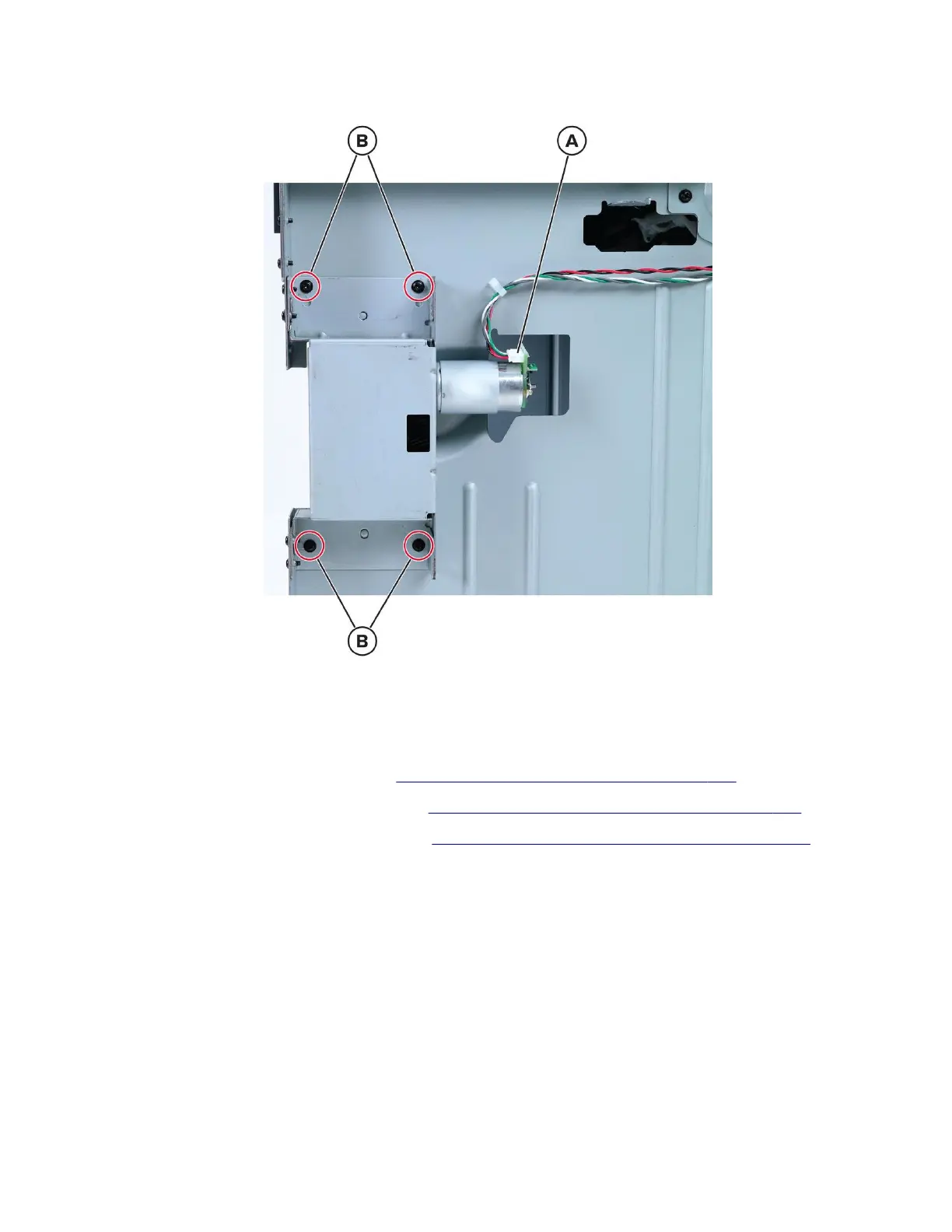

4 Disconnect the cable (A), and then remove the four screws (B).
5 Remove the elevator drive.
Sensor (2100-sheet tray paper size) removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray right cover. See “2100-sheet tray right cover removal” on page 476.
