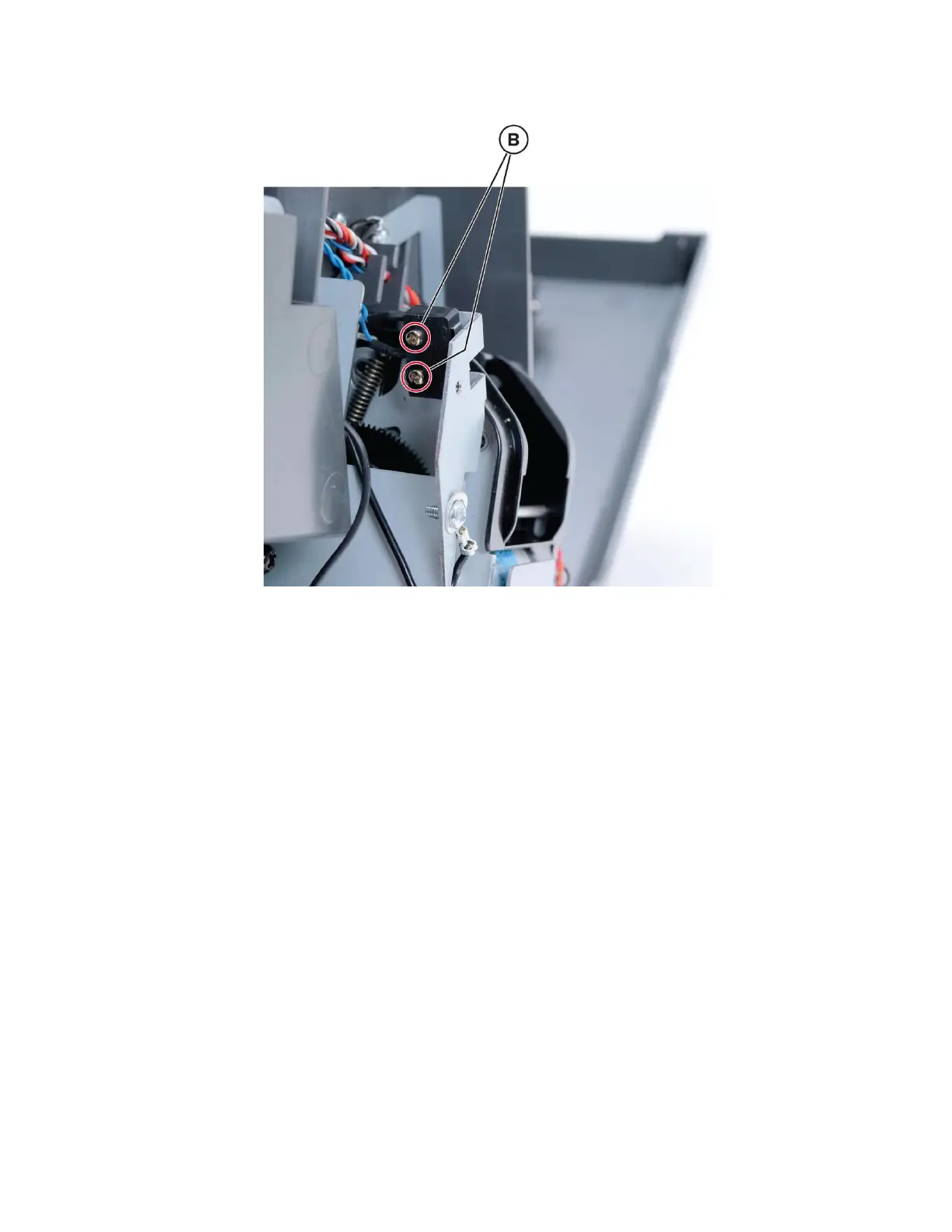

4 Remove the two screws (B), and then release the limit switch.
5 Disconnect the limit switch cable from the controller board.
6 Release, and then remove the limit switch.
Note: Pay attention to the original route of the cables.
Optional 4-bin mailbox removals
Optional 4‑bin mailbox removal
1 Press the latches to release.
2 Lift the mailbox o the printer.
Mailbox top cover removal
1 Lift the top cover.
2 Remove the top cover from the mailbox.
4064
Parts removal
648
