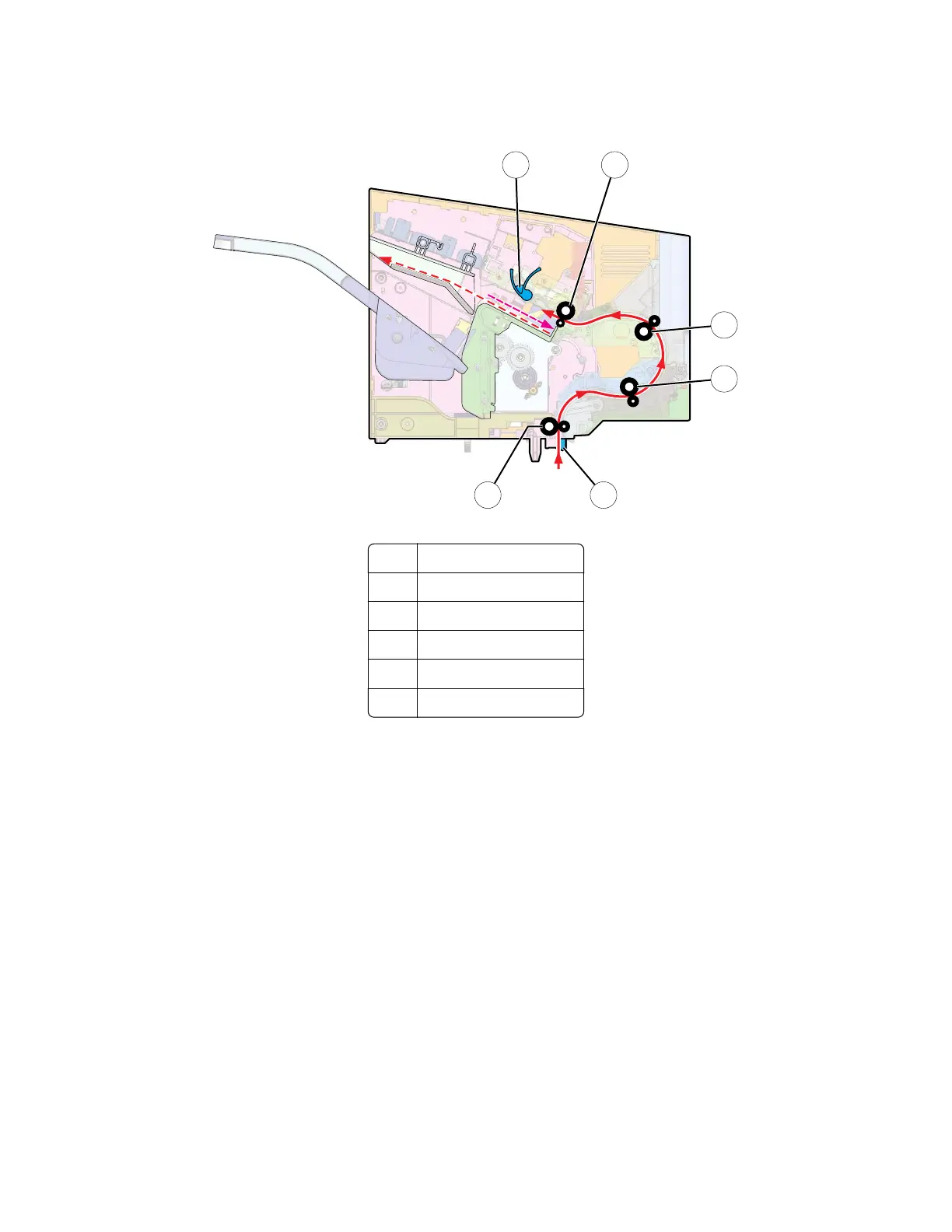

SHPF paper path rollers
6
3
5
1 2
4
1 SHPF entrance roller
2 Diverter plunger
3 SHPF transport roller 1
4 SHPF transport roller 2
5 SHPF exit roller
6 SHPF paddle roller
For staple or hole punch jobs, the paper path is redirected to the finisher.
Rollers along the paper path control the movement of the paper depending on the type of staple or hole punch
job. Before stapling occurs, paper will be stacked on top of each other and aligned along its edges.
When the staple or hole punch job is done, the paper is ejected to the bin.
4064
Theory of operation
901
