HCOE upper interface cable removal
1 Remove the HCOE sensor cover. See “HCOE sensor cover removal” on page 547.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
3 Disconnect the upper interface cable from the controller board.

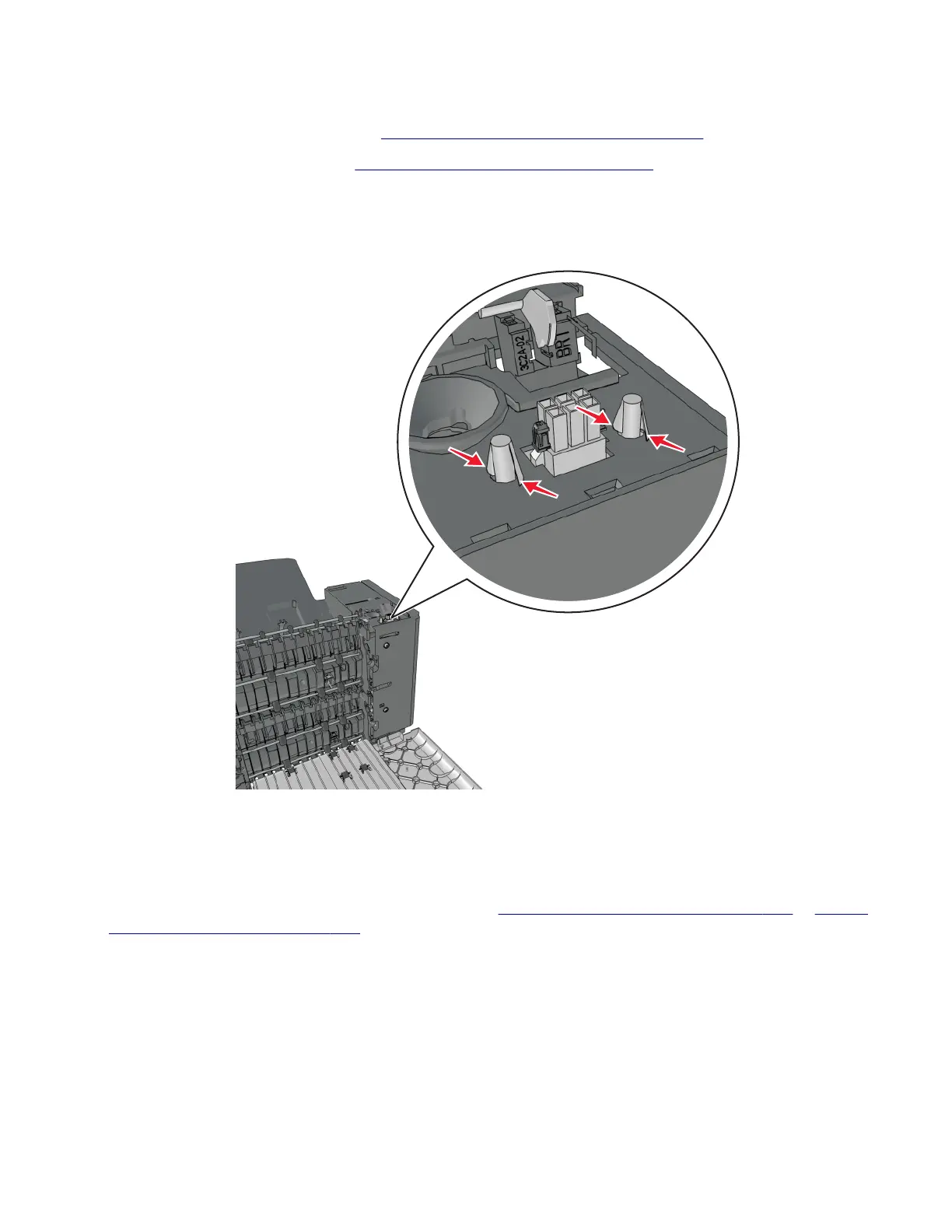

4 Crimp both connector pins using pliers to make them fit through the pin holes. Push the connector out of
its slot.
5 Remove the upper interface cable.
HCOE latch removal
1 Remove the HCOE left cover or HCOE right cover. See “HCOE left cover removal” on page 550 or “HCOE
right cover removal” on page 549.
2 Pull the latches o the expander, and then remove.
Note: The latch on the opposite side can be removed using the same method shown.
4064
Parts removal
554
