Lexmark MS821

1 2
Staple finisher chute assembly removal
Note: This part is not a FRU.
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple finisher diverter plunger assembly. See “Staple finisher diverter plunger assembly
removal” on page 604.
4 Remove the staple
finisher
drive gear assembly. See “Staple
finisher
drive gear assembly removal” on
page 604.
5 Remove the staple finisher entrance roller. See “Staple finisher entrance roller removal” on page 632.

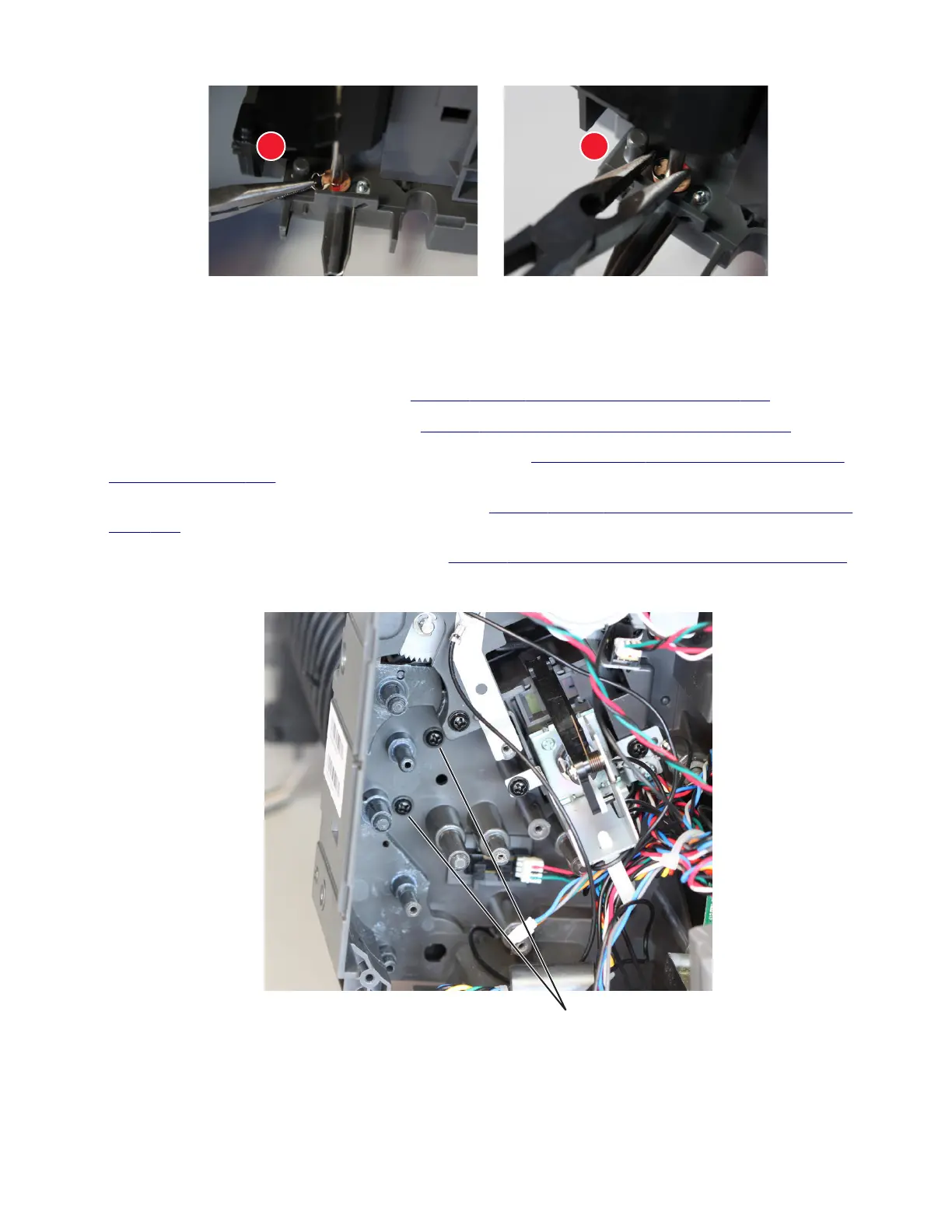

6 From the left side, remove the two screws (A).
A
4064
Parts removal
634
