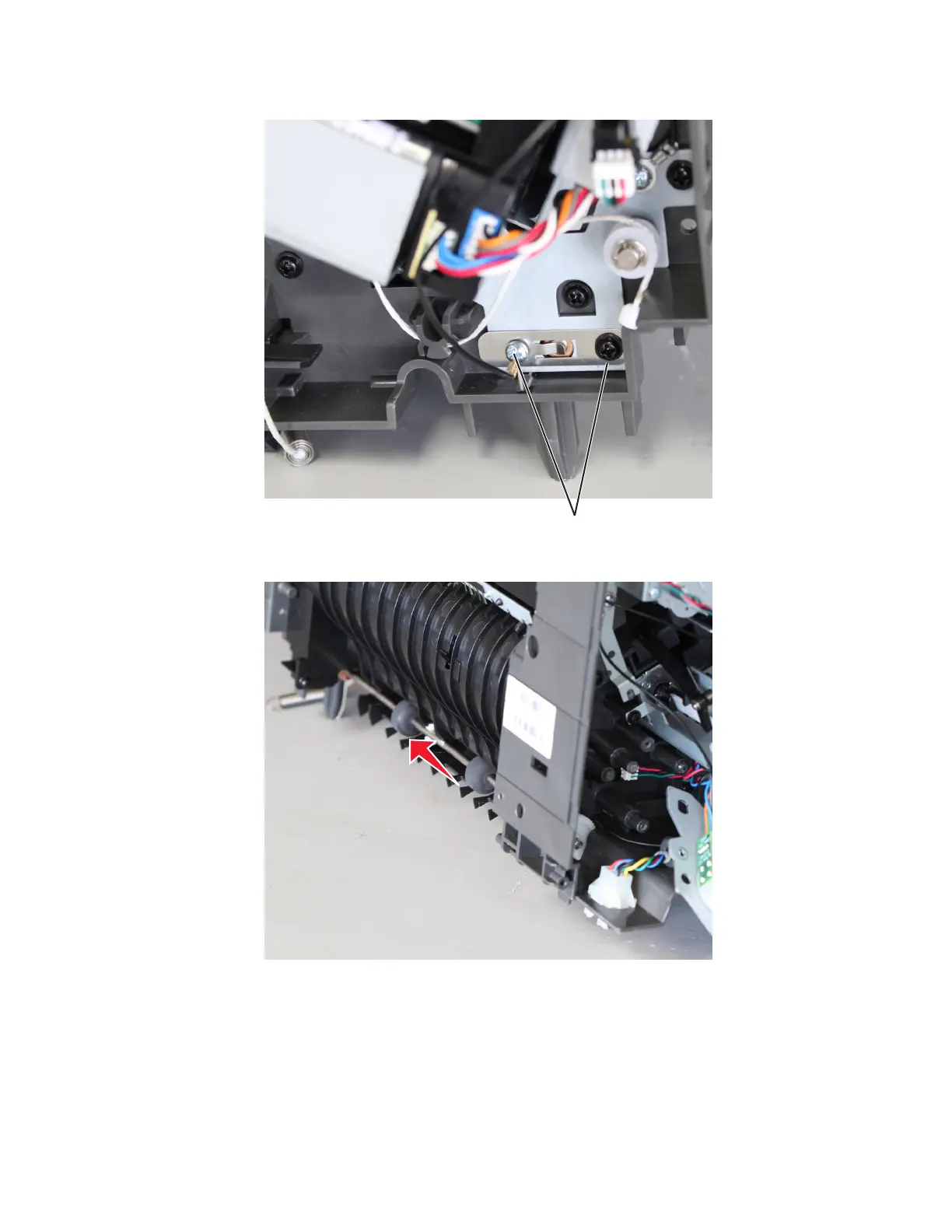

6 Remove the two screws (B), and then remove the grounding plate.
B
7 Slightly move the shaft to release, and then remove it.
Warning—Potential Damage: Be careful not to lose the bushing and spacers that hold the shaft.
Installation note: To make it less dicult to reinstall the E-clip, use a pair of long-nose pliers to position it
onto the shaft, and then lock it in place.
4064
Parts removal
633
