Lexmark MS821

SHPF bin link assembly removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.
2 Remove the staple, hole punch finisher right cover. See “Staple, hole punch finisher right cover removal”
on page 701.
3 Remove the staple, hole punch
finisher
controller board. See “Staple, hole punch
finisher
controller board
removal” on page 705.
4 Remove the staple, hole punch finisher elevator drive. See “Staple, hole punch finisher elevator drive
removal” on page 722.

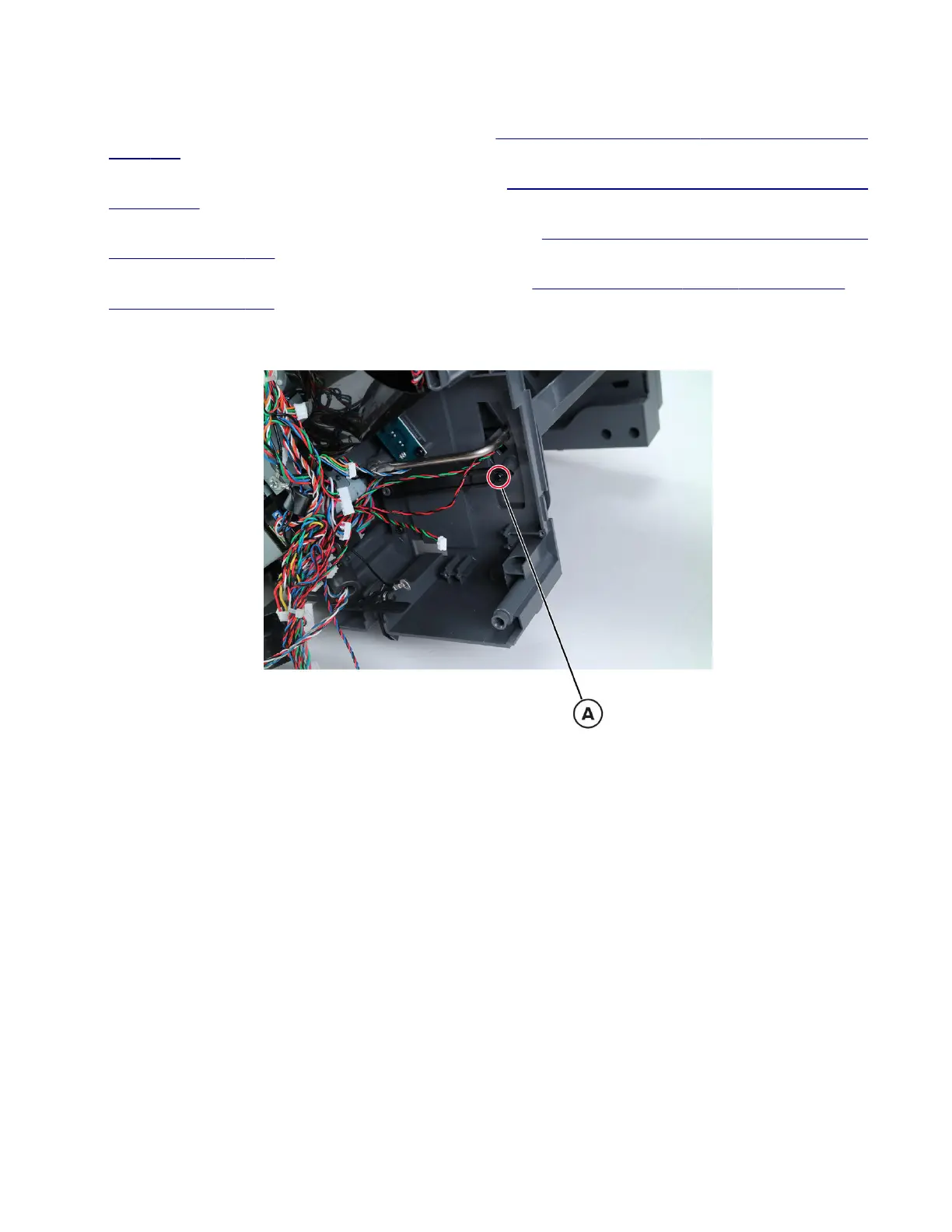

5 Remove the screw (A), and then remove the left tray link.
