Lexmark MS821

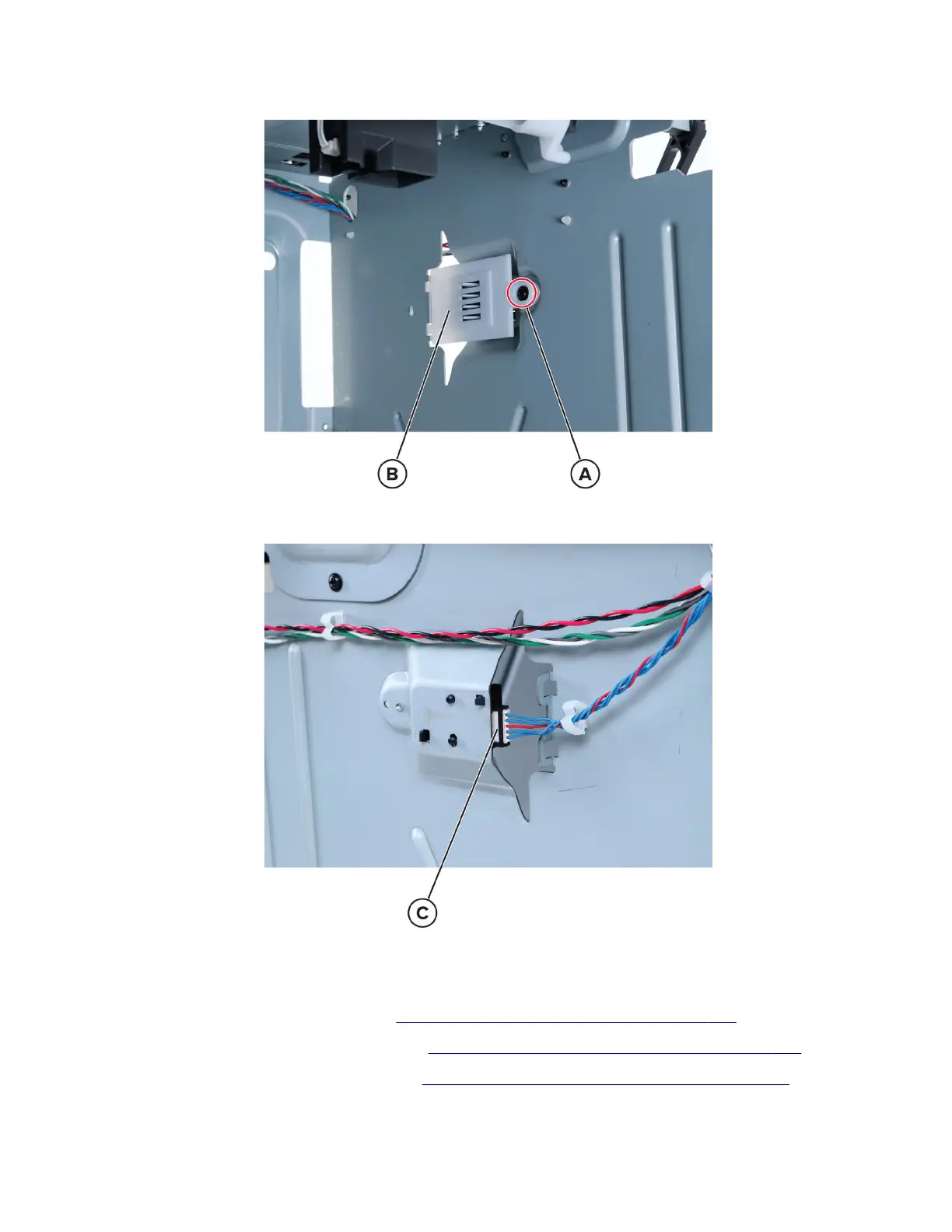

4 Remove the screw (A), and then remove the cover (B).
5 Disconnect the sensor cable (C), and then remove the sensor.
2100-sheet tray interface cable removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray left cover. See “2100-sheet tray left cover removal” on page 473.
4064
Parts removal
486
