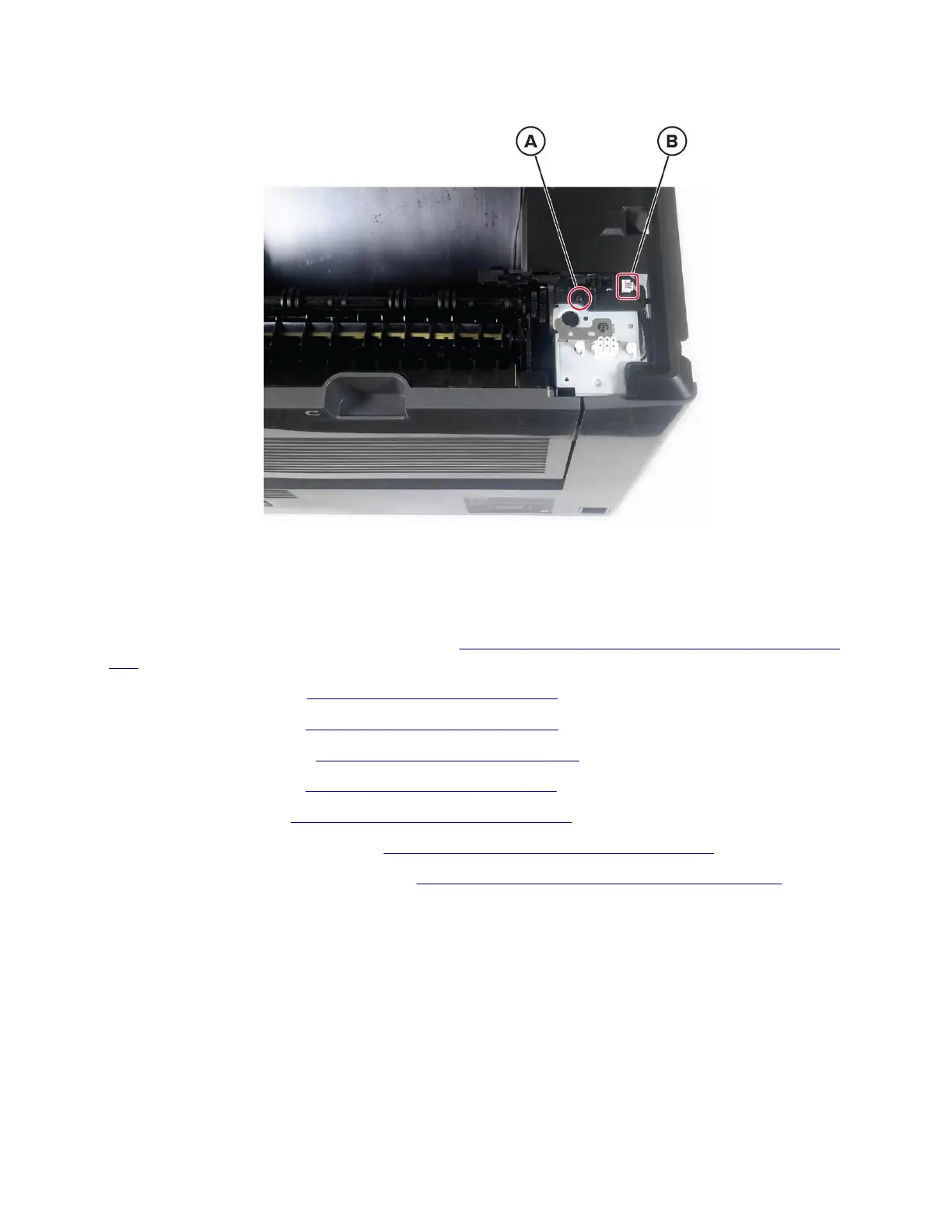

3 Remove the screw (A), and then disconnect the sensor cable (B).
4 Remove the sensor.
Bin cover removal
1 Remove the control panel (4.3-inch display). See “Control panel (4.3-inch display) removal” on page
442.
2 Remove the top cover. See “Top cover removal” on page 455.
3 Remove the left cover. See “Left cover removal” on page 409.
4 Remove the right cover. See “Right cover removal” on page 420.
5 Remove the rear door. See “Rear door removal” on page 449.
6 Remove the redrive. See “Upper redrive removal” on page 453.
7 Remove the bin full sensor cover. See “Bin full sensor cover removal” on page 460.
8 Remove the sensor (standard bin full). See “Sensor (standard bin full) removal” on page 460.
4064
Parts removal
461
