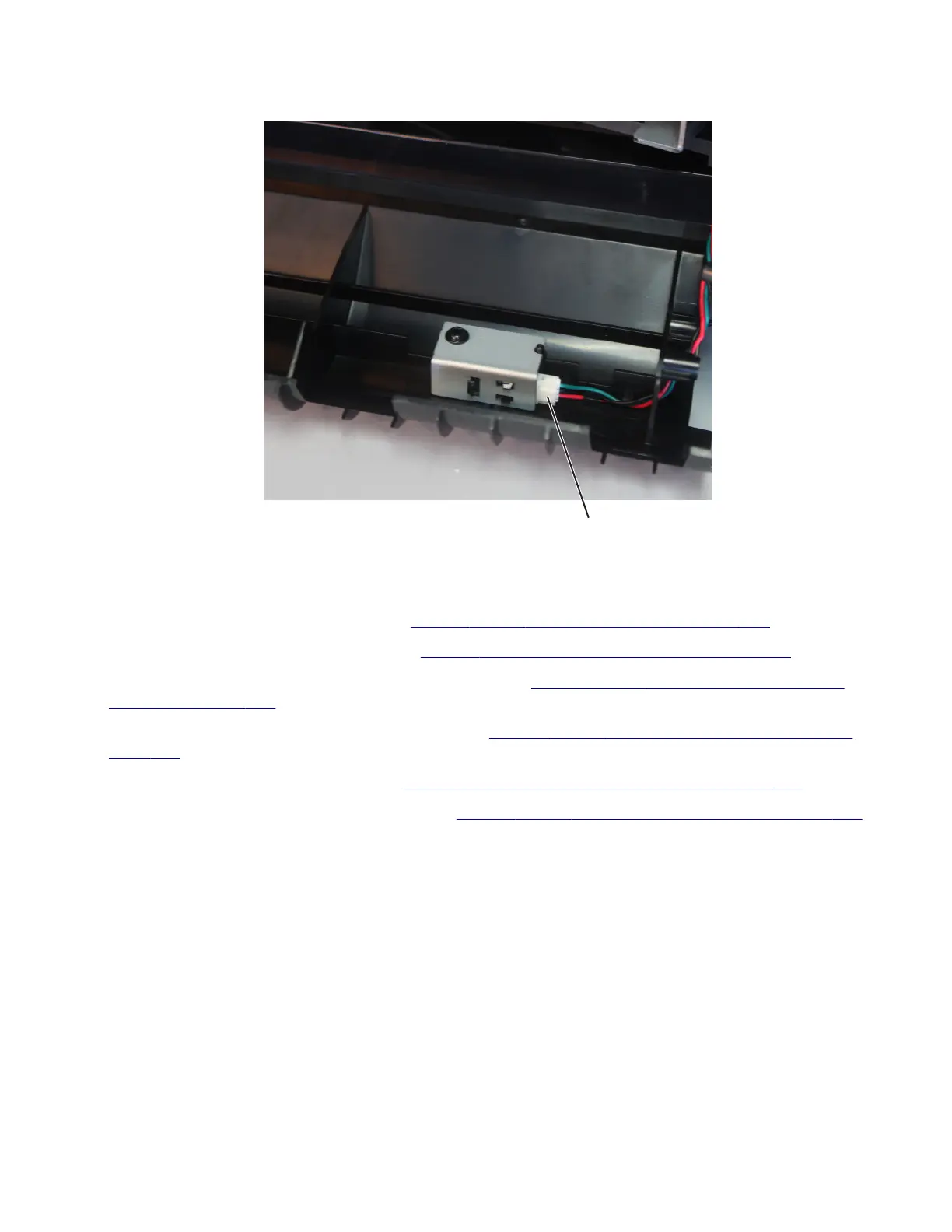

10 Disconnect the cable (D), and remove the chute assembly.
D
Staple finisher ejector assembly removal
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple finisher diverter plunger assembly. See “Staple finisher diverter plunger assembly
removal” on page 604.
4 Remove the staple
finisher
drive gear assembly. See “Staple
finisher
drive gear assembly removal” on
page 604.
5 Remove the staple finisher feed roll. See “Staple finisher entrance roller removal” on page 632.
6 Remove the staple finisher chute assembly. See “Staple finisher chute assembly removal” on page 634.
4064
Parts removal
637
