Lexmark MS821

Sensor (SHPF diverter plunger) removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.
2 Remove the left staple unit. See “Left staple unit removal” on page 709.

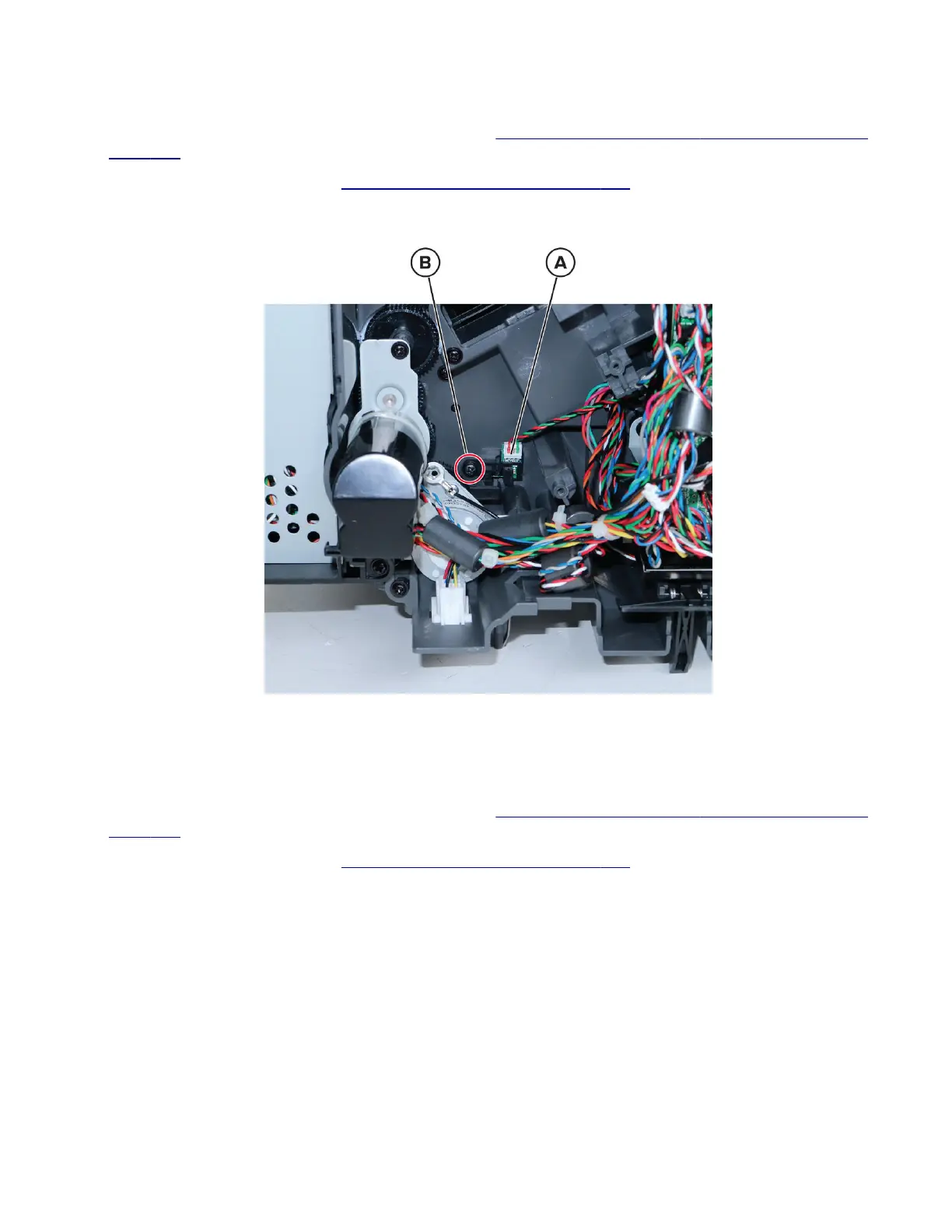

3 Disconnect the cable (A), and then remove the screw (B).
4 Remove the sensor.
Staple, hole punch
finisher
interface cable removal
1 Remove the staple, hole punch finisher left cover. See “Staple, hole punch finisher left cover removal” on
page 699.
2 Remove the left staple unit. See “Left staple unit removal” on page 709.
