Installation note: Make sure that the cables do not get in the way of moving parts.

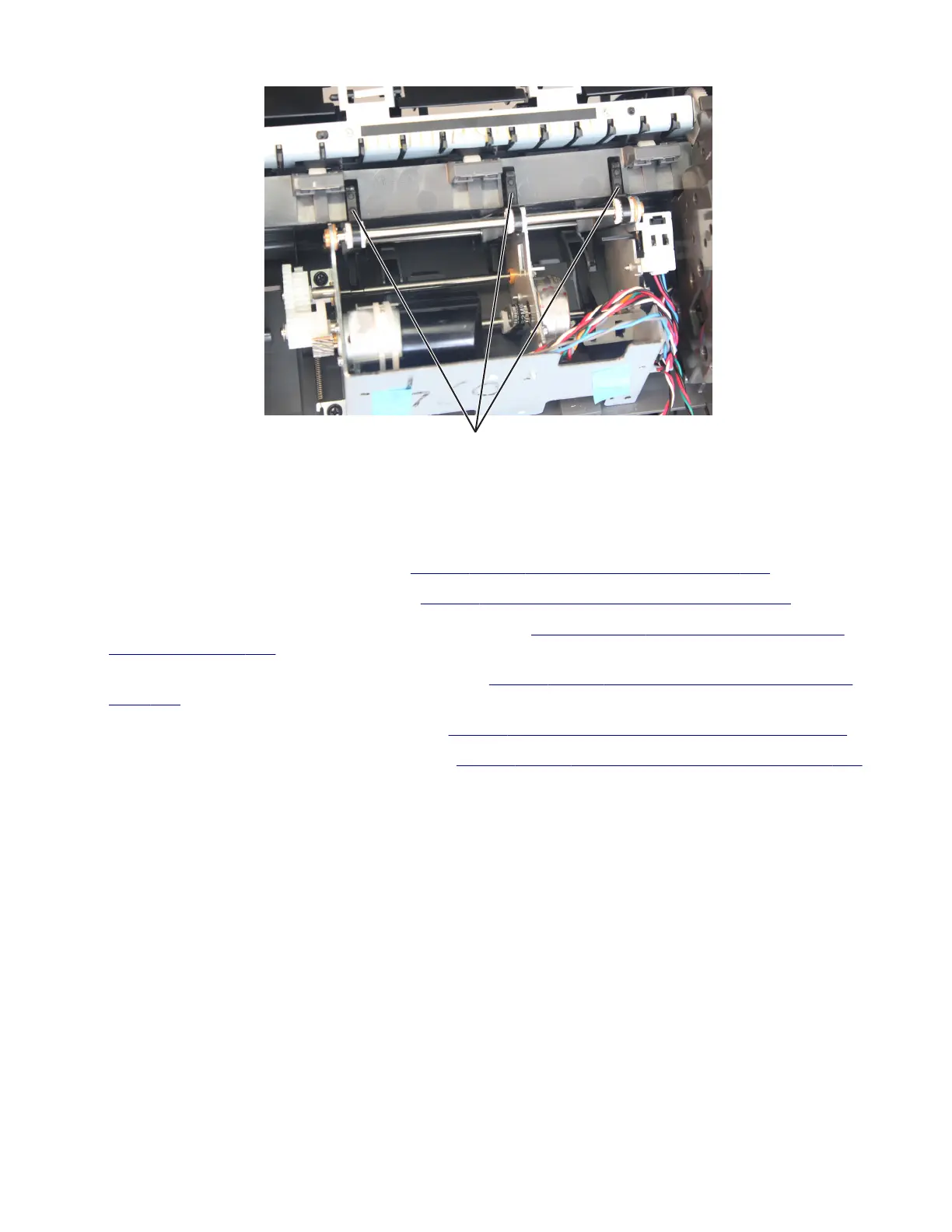

Sensor (staple
finisher
ejector) removal
1 Remove the staple finisher left cover. See “Staple finisher left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple finisher diverter plunger assembly. See “Staple finisher diverter plunger assembly
removal” on page 604.
4 Remove the staple finisher drive gear assembly. See “Staple finisher drive gear assembly removal” on
page 604.
5 Remove the staple finisher entrance roller. See “Staple finisher entrance roller removal” on page 632.
6 Remove the staple finisher chute assembly. See “Staple finisher chute assembly removal” on page 634.
