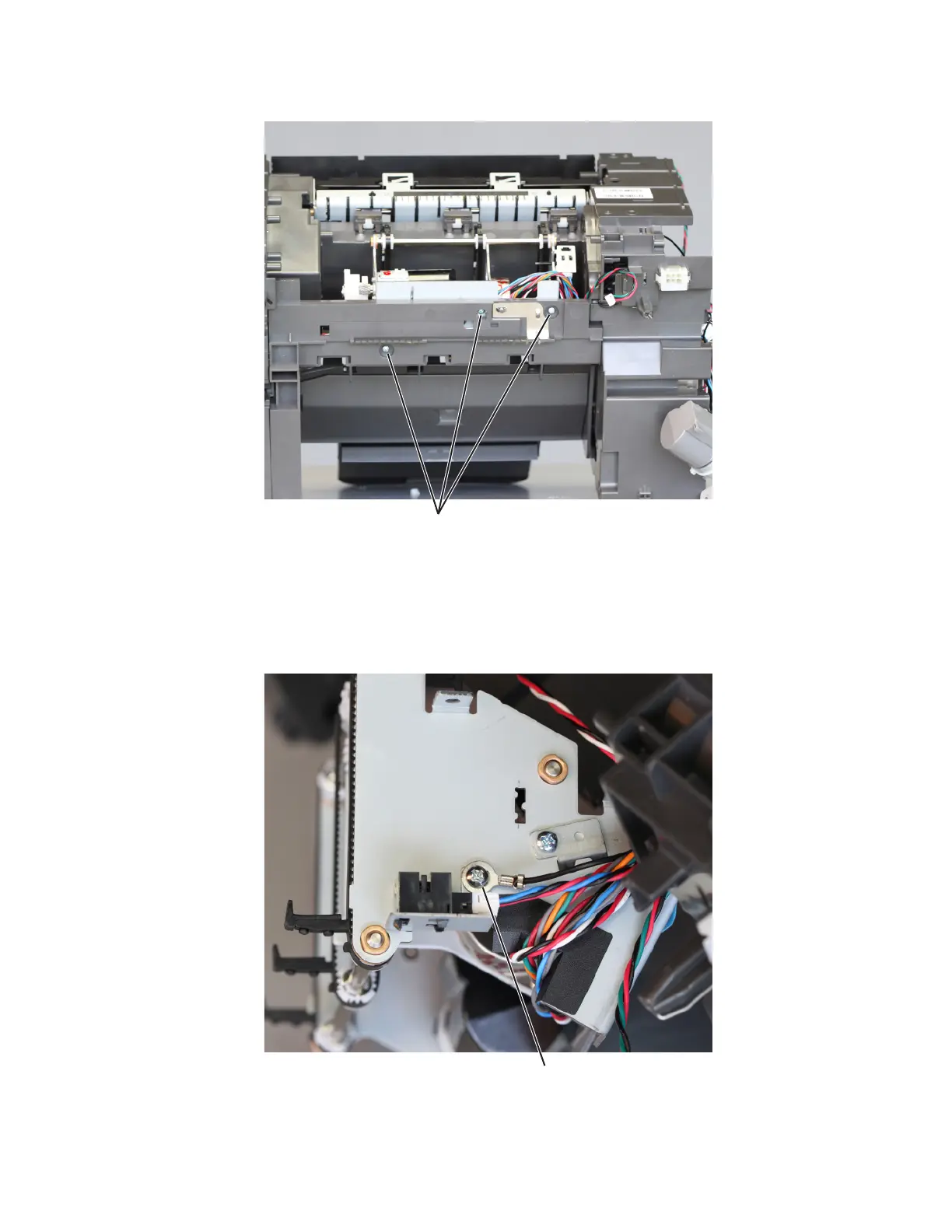

9 From the bottom side, remove the three screws (C).
C
10 Release the cables from their guides.
Note: Pay attention to the original route of the cables.
11 Pull the ejector assembly away from the bin.
12 Remove the screw (D), and then release the sensor bracket from the assembly.
D
Installation note: Make sure that the paddles (E) align and
fit
properly.
4064
Parts removal
