Lexmark MS821

Fuser drive gears removal
1 Remove the fuser. See “Fuser removal” on page 452.
2 Remove the top cover. See “Top cover removal” on page 455.
3 Remove the left cover. See “Left cover removal” on page 409.
4 Remove the main motor drive. See “Main motor drive removal” on page 410.

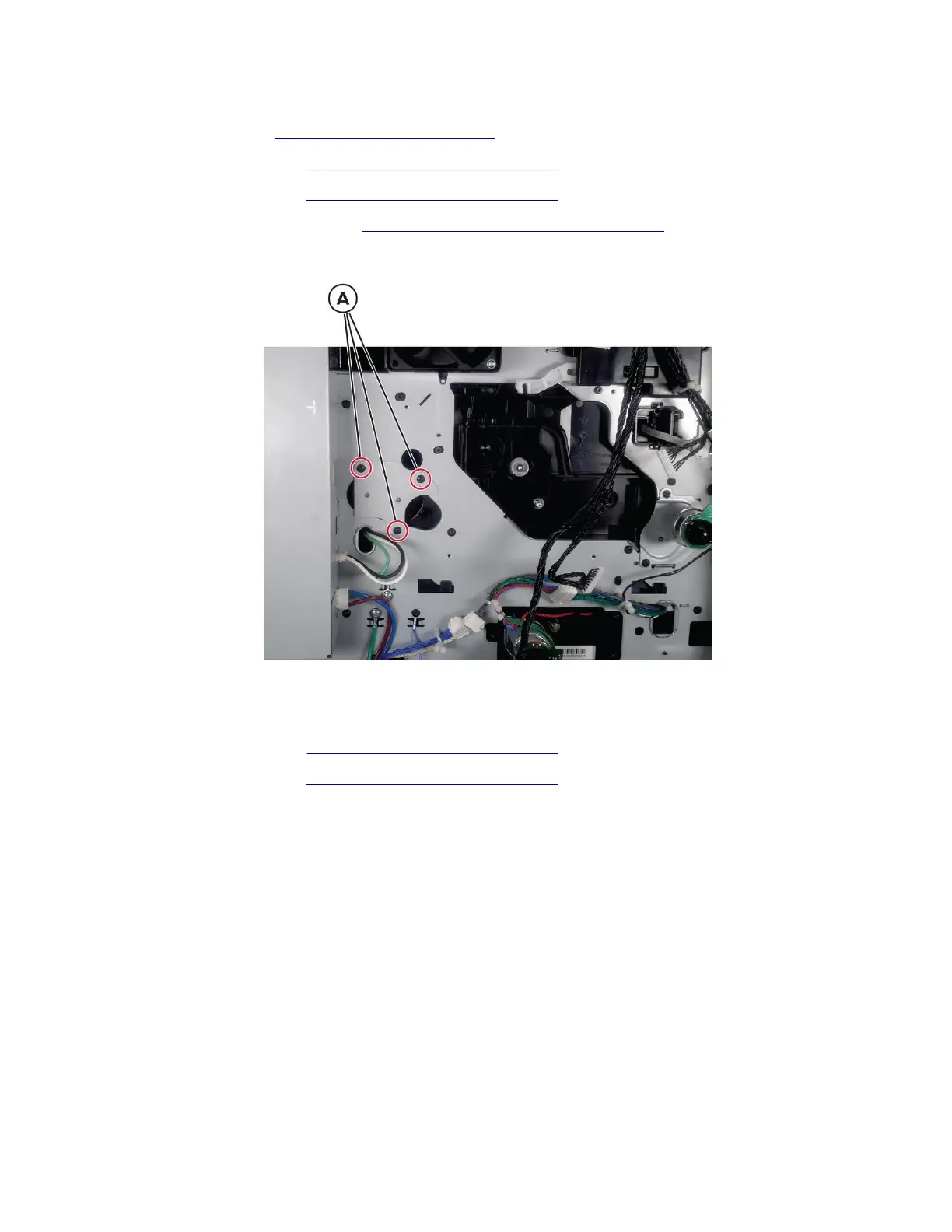

5 Remove the three screws (A), and then remove the drive gears.
Main fan removal
1 Remove the top cover. See “Top cover removal” on page 455.
2 Remove the left cover. See “Left cover removal” on page 409.
3 Disconnect the cable (A), and then release it from its holder (B).
