Lexmark MS821

Motor (staple finisher paddle) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.

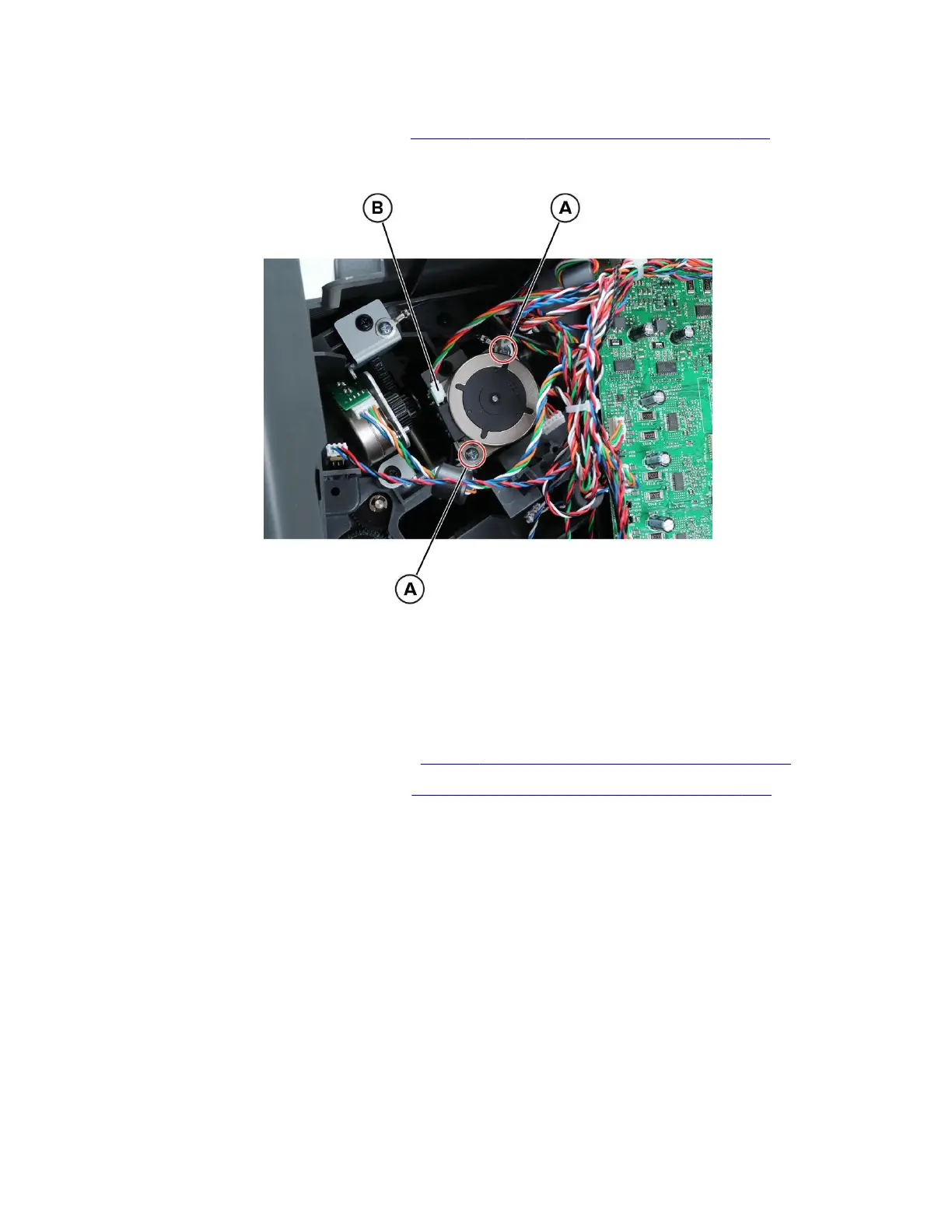

2 Remove the two screws (A), and then disconnect the cable (B).
Installation note: Make sure that the two ground cables are reinstalled.
3 Remove the motor.
Staple unit removal
1 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
2 Remove the staple finisher top cover. See “Staple finisher top cover removal” on page 588.
4064
Parts removal
592
