3 Use the Diagnostics Menu to test the replacement part. Do a feed test to check if the problem is resolved.
• If the problem is not resolved—Turn o the printer, and then reinstall the old part.
• If the problem is resolved—Perform a POR.
Removal procedure
1 Swing the control panel away from the printer.

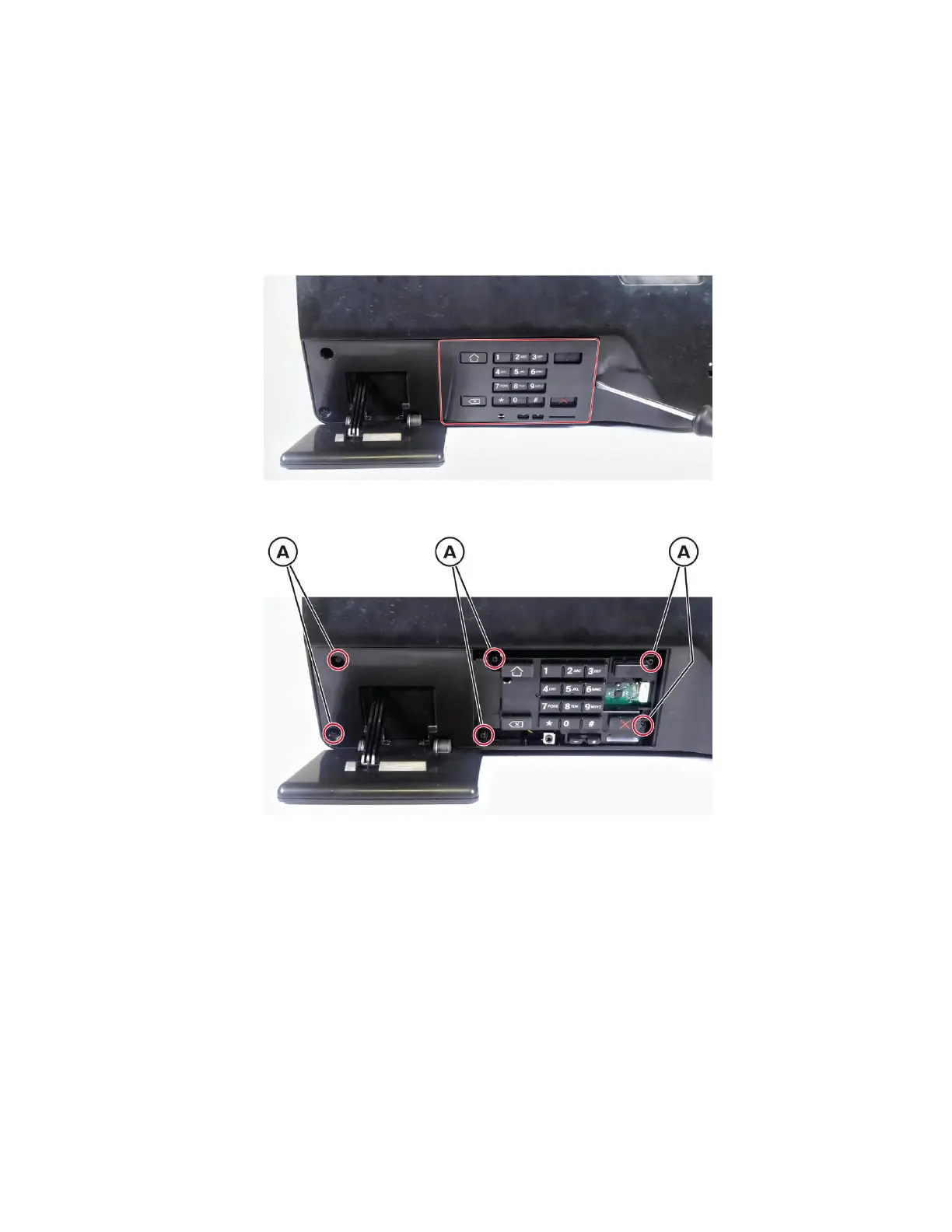

2 Release the control panel (4.3‑inch display) cover using a flat screwdriver, and then remove it.
3 Remove the six screws (A), and then lift the control panel.
4064
Parts removal
443
