Lexmark MS821

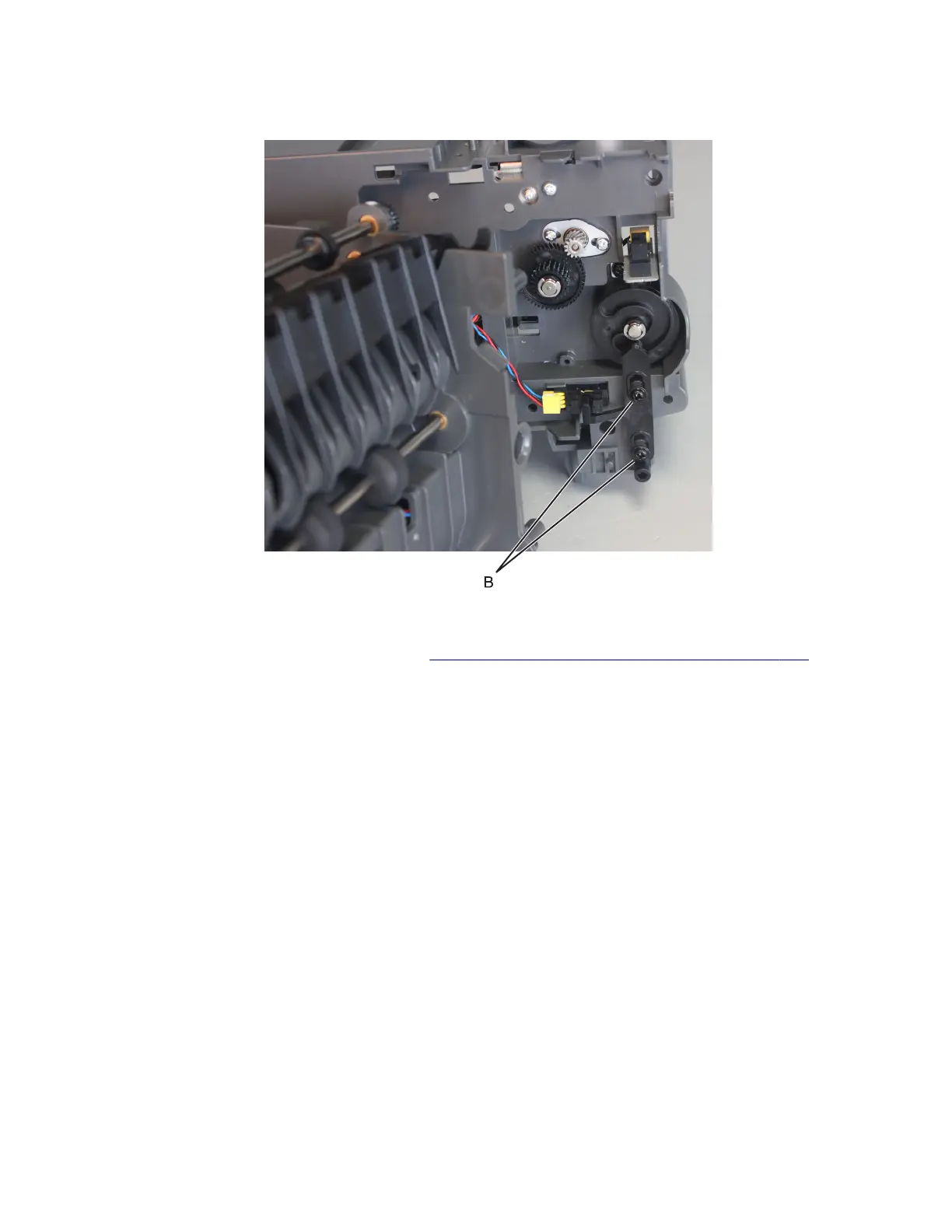

3 Pull away the frame to access the parts underneath. Remove the two screws (B), and then remove the
plunger.
Diverter cam removal
1
Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the output expander diverter plunger. See preceding removal.
4064
Parts removal
530
