Lexmark MS821

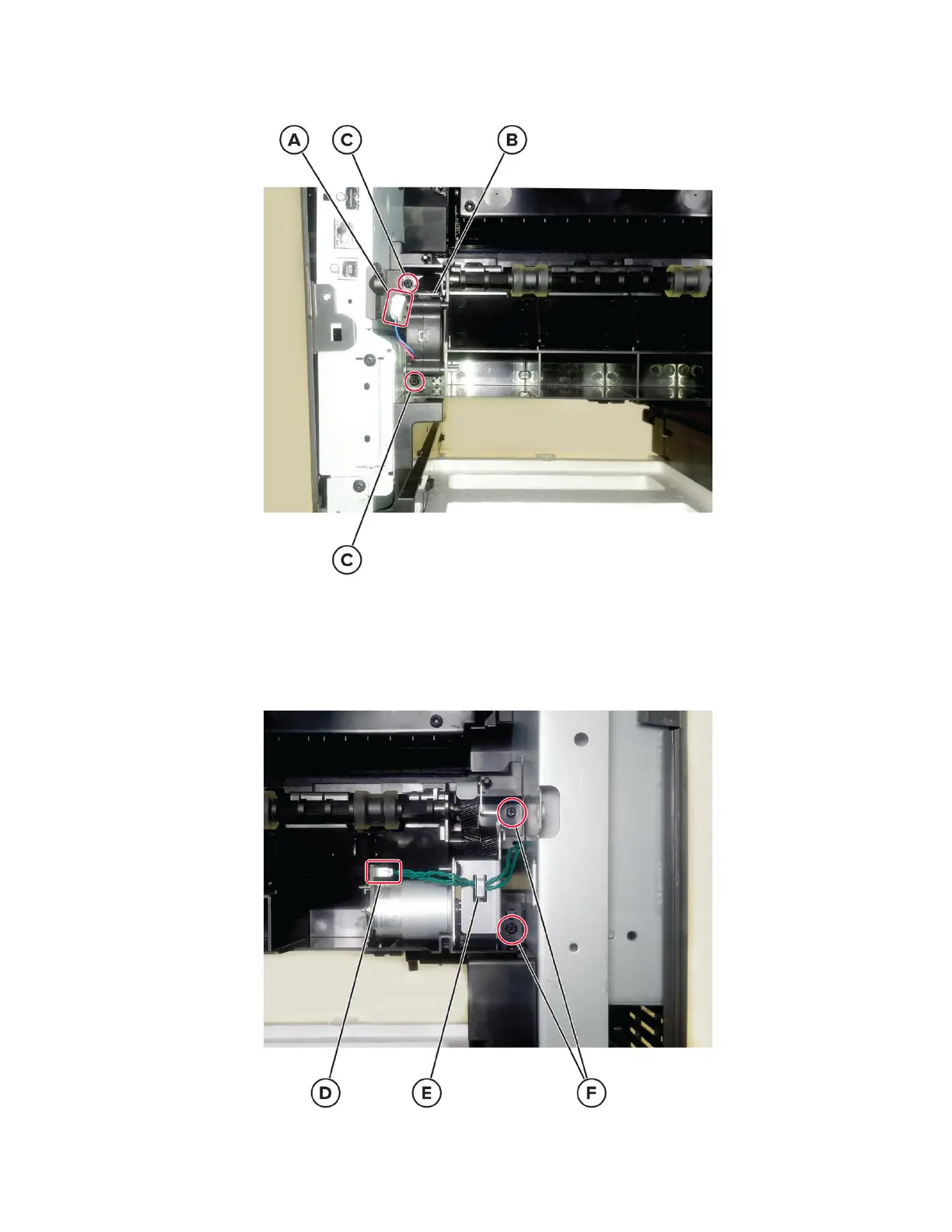

4 Remove the two screws (C).
5 Disconnect the cable (D), and then release it from its guide (E).
6 Remove the two screws (F), and then remove the motor.
Warning—Potential Damage: Make sure that the motor cables are disconnected before removing the
motor.
4064
Parts removal
451
