Installation for printers with 4.3‑inch displays
• Install the appropriate controller board (PN 41X1127).

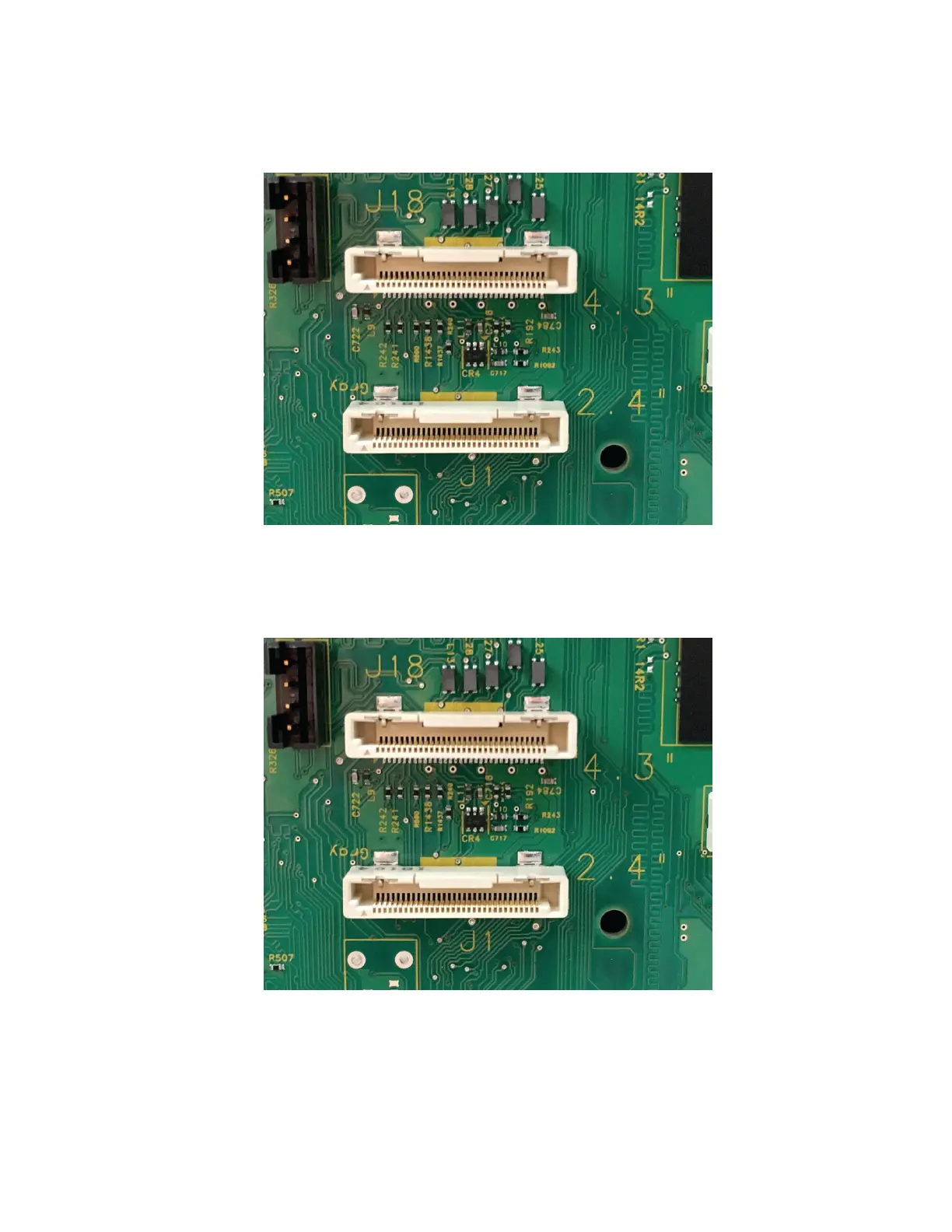

• Connect the control panel cable to socket J18 (labeled with 4.3”) on the controller board.
Installation for printers with 2.4‑inch displays
• Install the appropriate controller board (PN 41X2606).
• Connect the control panel cable to socket J1 (labeled with 2.4”) on the controller board.
Note: The controller board (PN 41X1127) may also be installed with the 2.4‑inch displays by doing the
following:
1 Connect the control panel cable to socket J1 (labeled with 2.4”) on the controller board.
2 Download the appropriate firmware (non‑touch version).
4064
Parts removal
426
