Lexmark MS821

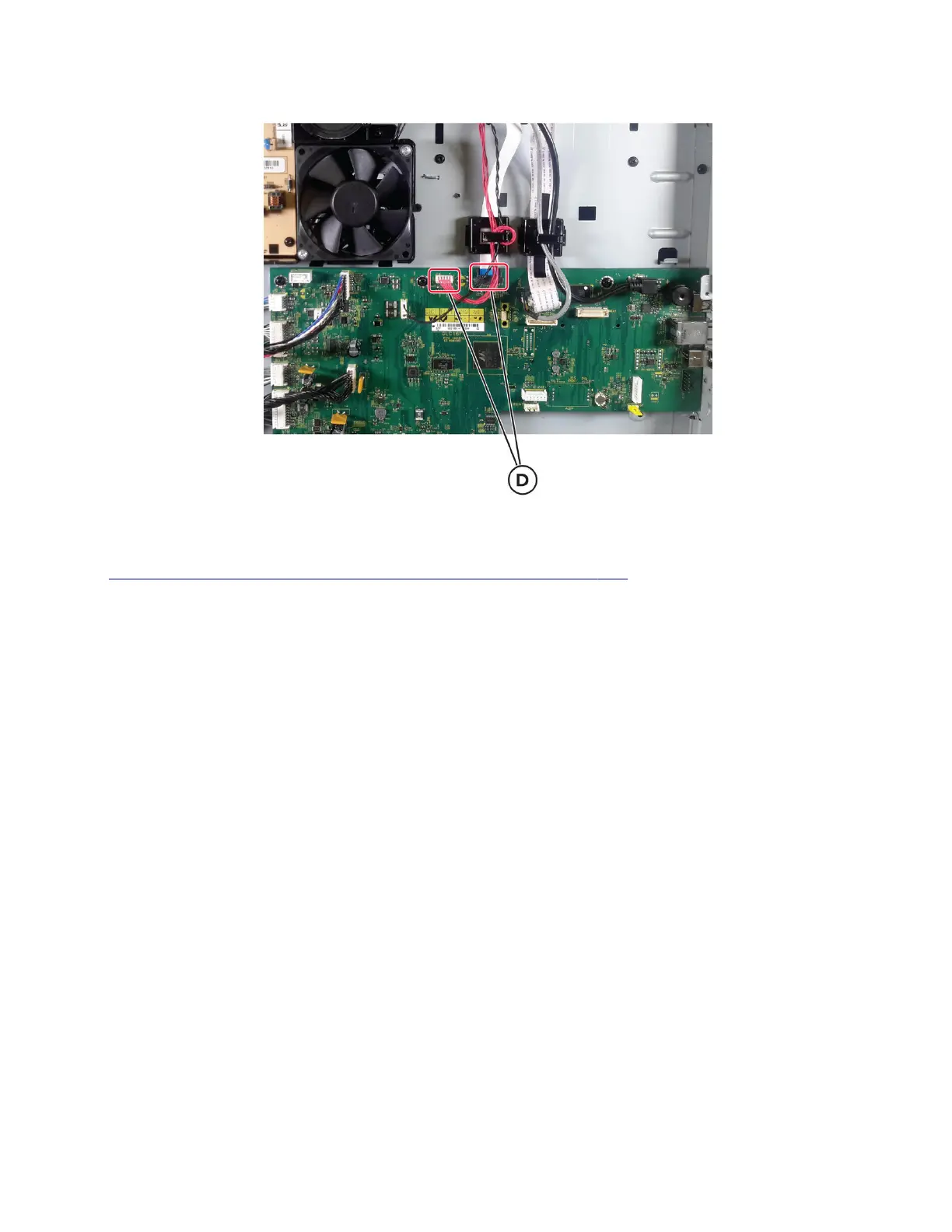

5 Disconnect the two cables (D) from the controller board.
6 Remove the printhead.
Installation note: Make sure that the printhead is aligned first before tightening the screws. See
“Polygon printhead mechanical registration adjustment” on page 405.
4064
Parts removal
459
