Lexmark MS821

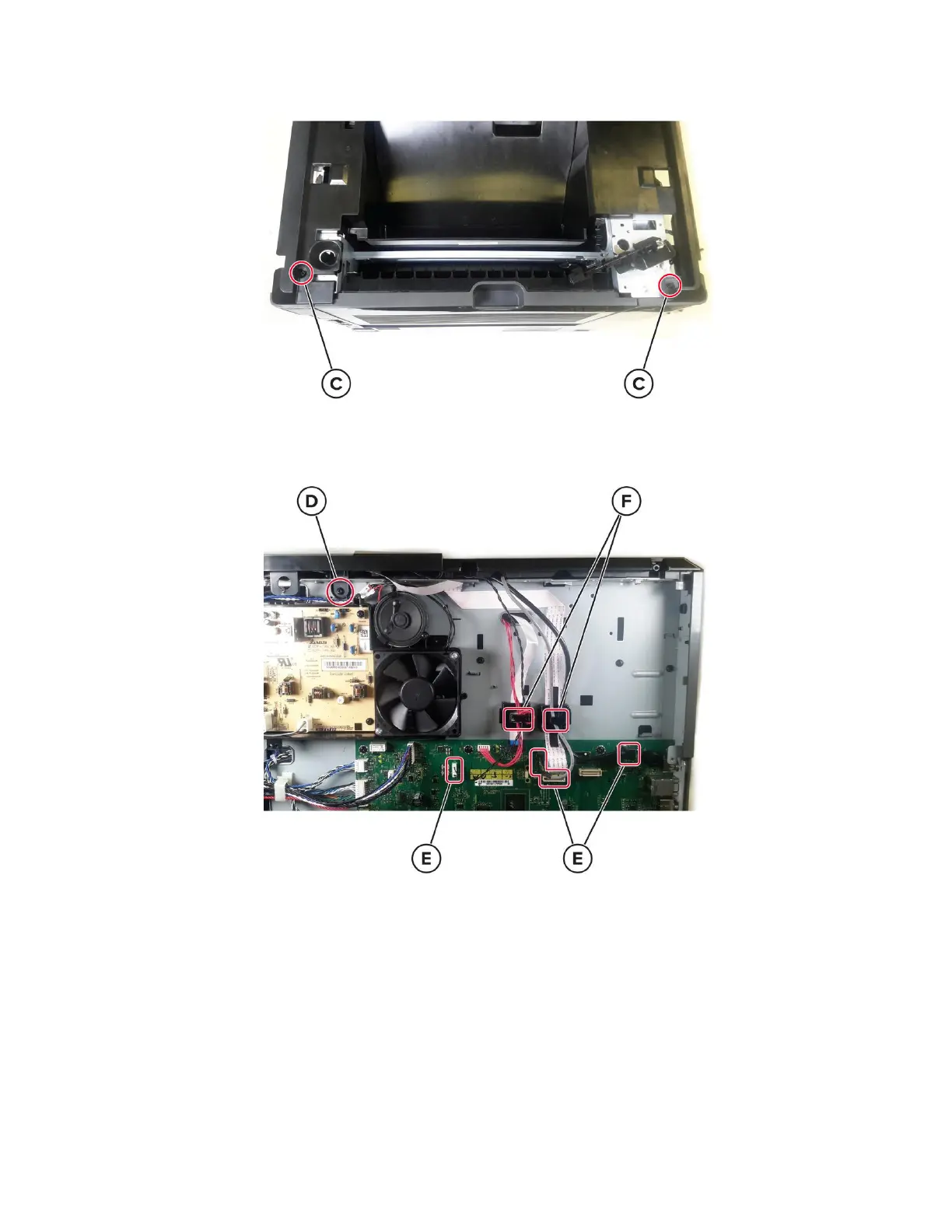

11 From the top side, remove the two screws (C).
12 From the right side, remove the screw (D).
13 Disconnect the four cables (E), and then release them from their guides (F).
14 Remove the cover.
Warning—Potential Damage: Be careful not to damage the cables.
4064
Parts removal
463
