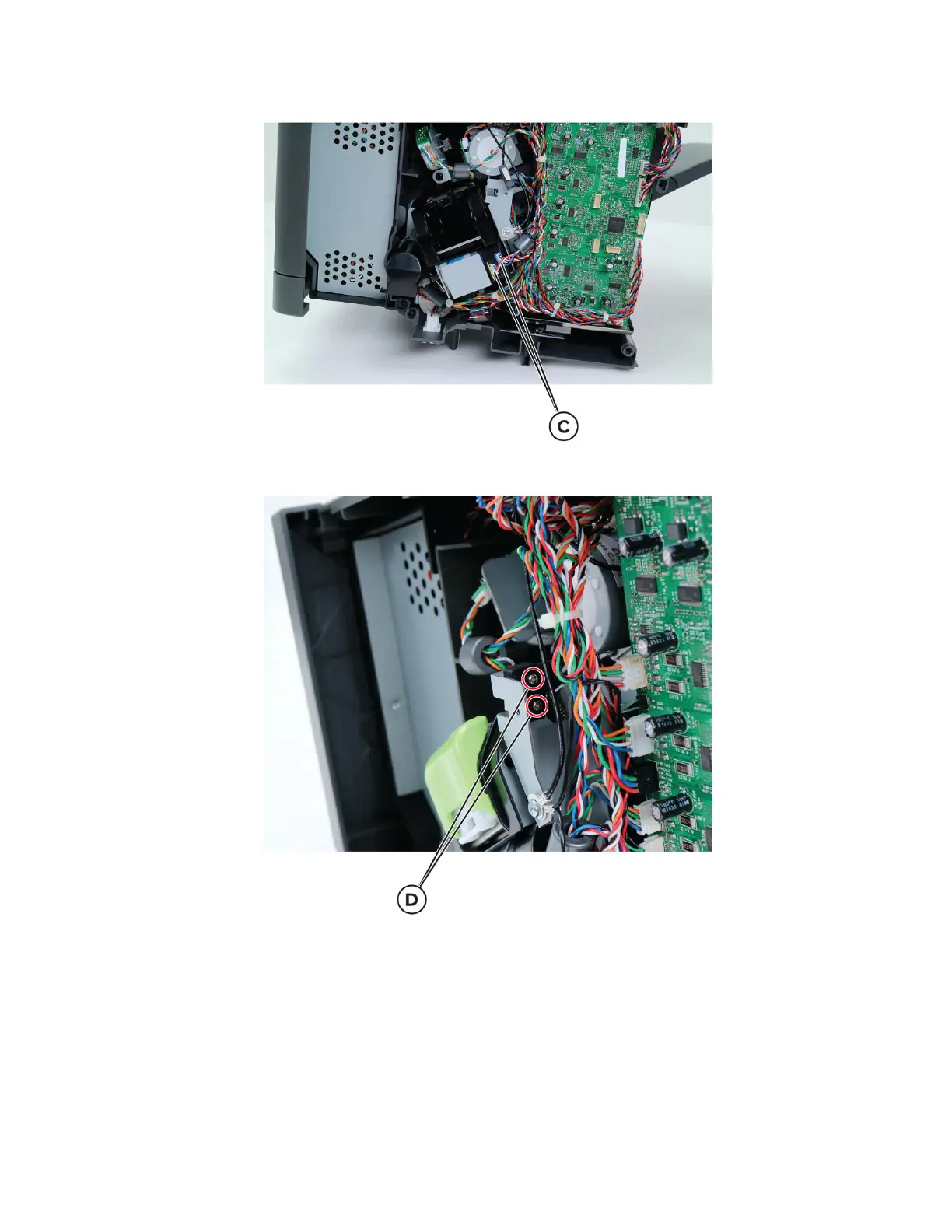

5 From the left side, disconnect the two cables (C)
6 Remove the two screws (D), and then release the left limit switch.
7 Disconnect the limit switch cable from the controller board.
8 Release, and then remove the limit switch.
Note: Pay attention to the original route of the cables.
4064
Parts removal
