Lexmark MS821

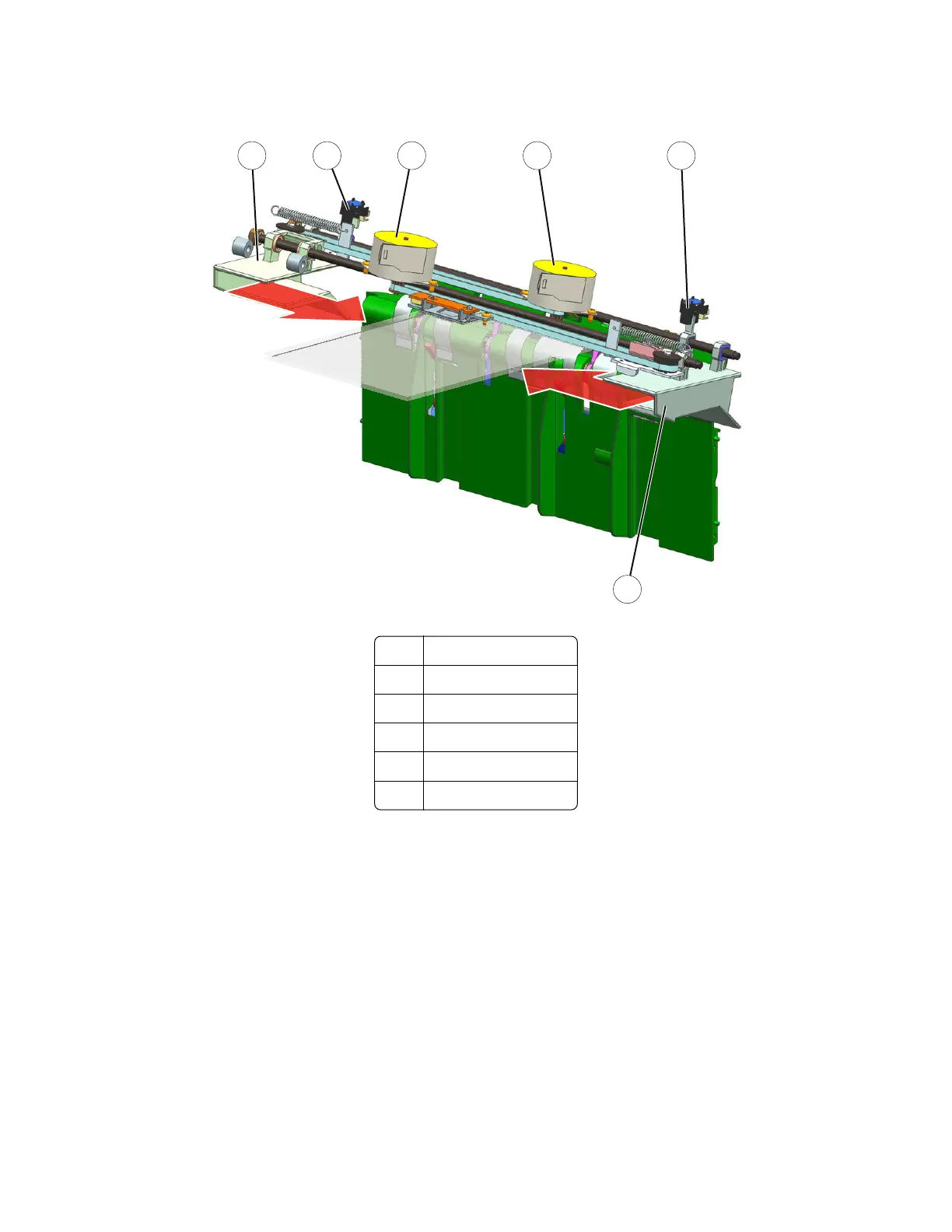

Long edge alignments
32 5 6 4
1
1 Right tamper
2 Left tamper
3 Sensor (left tamper)
4 Sensor (right tamper)
5 Motor (right tamper)
6 Motor (left tamper)
On the tamper tray, each sheet that is added to the paper stack is aligned by tampers. The tampers push inward
to align the long edges of the paper stack. Two motors control the position and movement of the tampers. Each
tamper is detected by its sensor at its home position.
