Lexmark MS821

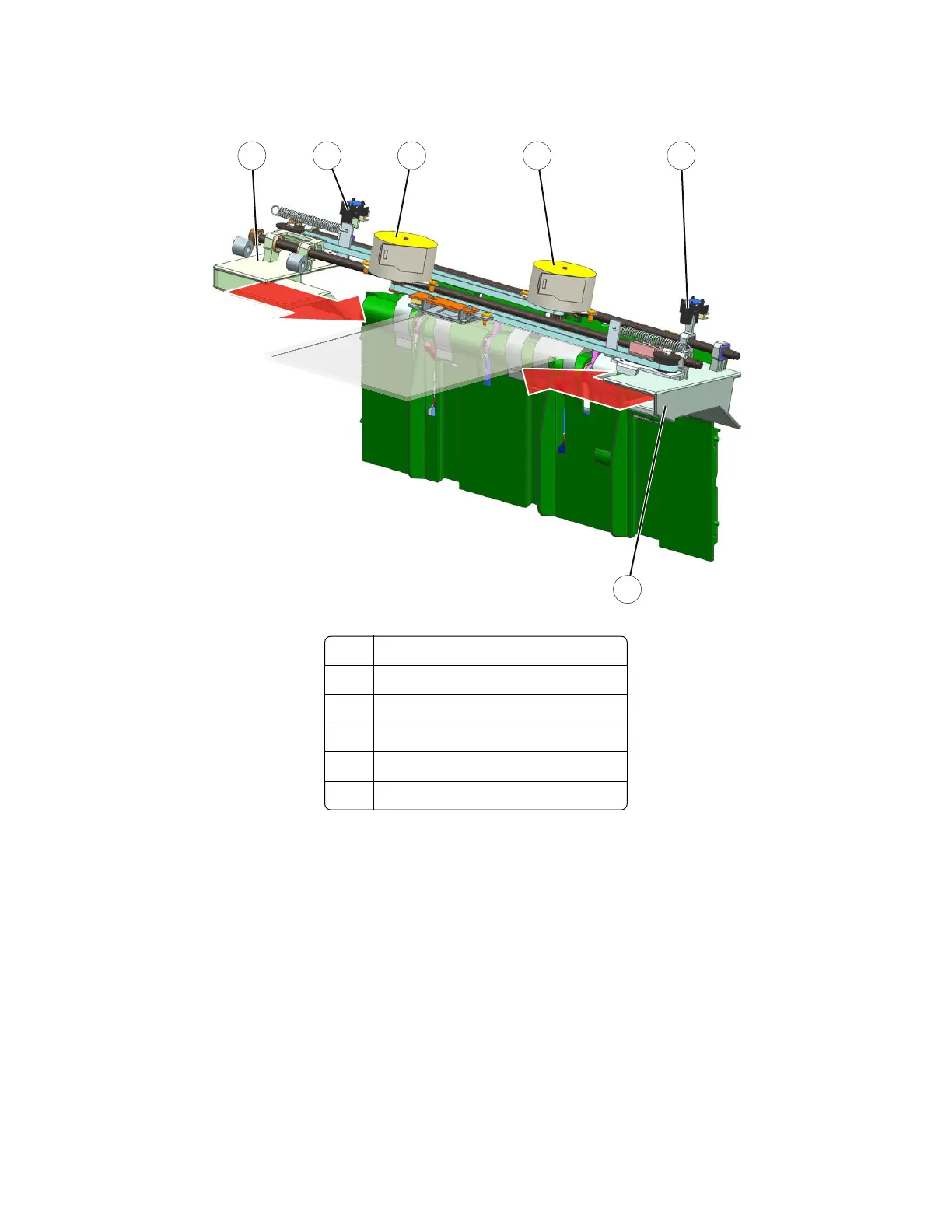

Long edge alignments
32 5 6 4
1
1 Right tamper
2 Left tamper
3 Sensor (staple finisher left tamper)
4 Sensor (staple finisher right tamper)
5 Motor (staple finisher right tamper)
6 Motor (staple finisher left tamper)
On the tamper tray, each sheet that is added to the paper stack is aligned by the tampers. The tampers push
inward to align the long edges of the paper stack. Two motors control the position and movement of the tampers.
The sensors detect each tamper at its home position.
