Lexmark MS821

J5 J4D J2AJ1B
J3T
J12
J6
J4C
J2B
J4B
J7
J3B
J1A J8 J4A J2C
M
MOTOR
(MAILBOX
TRANSPORT)
SENSOR
(MAILBOX REAR
DOOR INTERLOCK)
MAILBOX BIN LED
ASSEMBLY
M
MOTOR
(MAILBOX
DIVERTER)
SENSOR
(MAILBOX PASS-
THROUGH)
SENSOR
(MAILBOX DIVERTER
PLUNGER)
MAILBOX UPPER
INTERFACE CABLE
MAILBOX LOWER
INTERFACE CABLE

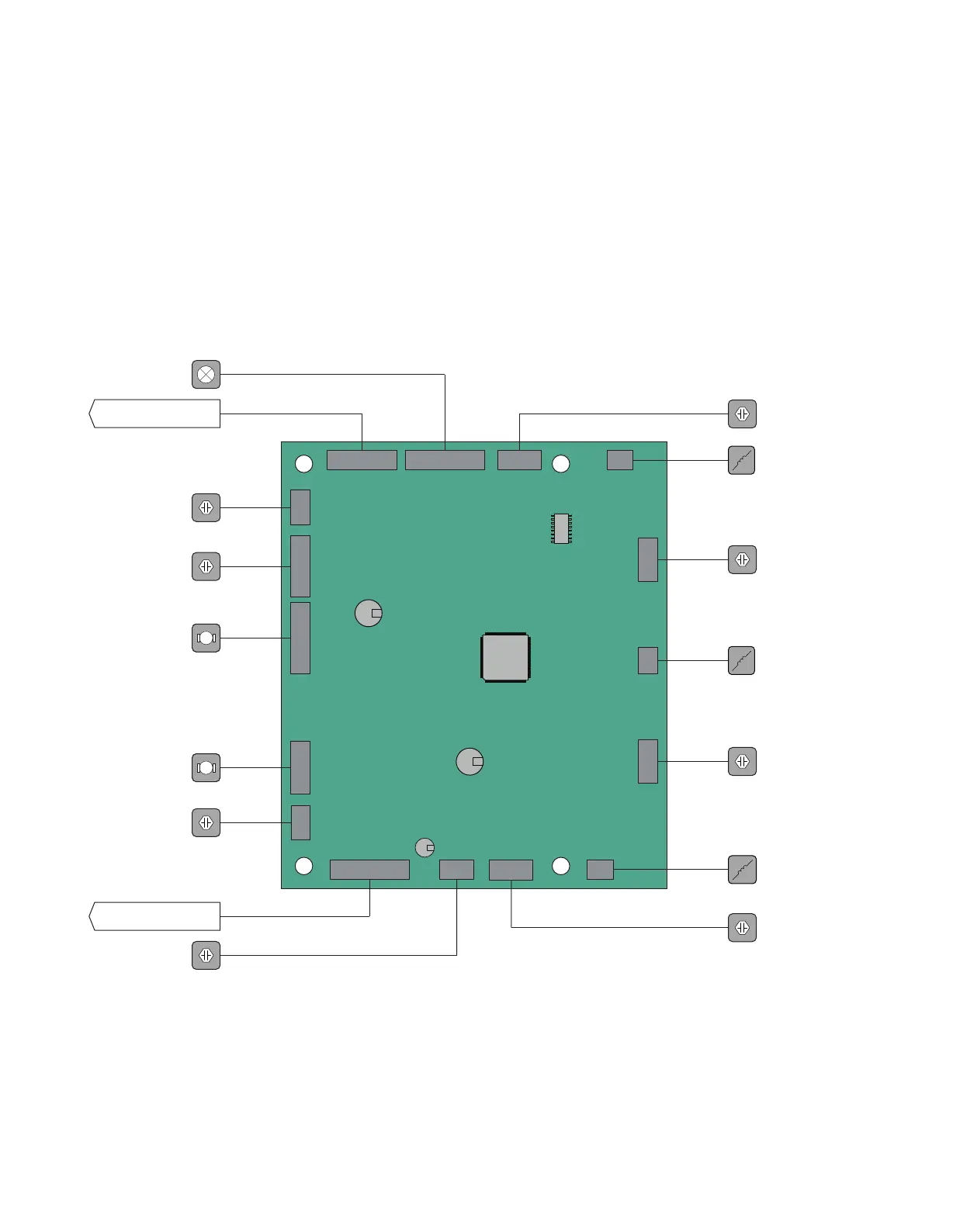

MAILBOX CONTROLLER BOARD
MAILBOX SOLENOID 1
SENSOR
(MAILBOX BIN FULL),
BIN 4
SENSOR
(MAILBOX BIN FULL),
BIN 3
MAILBOX SOLENOID 2
SENSOR
(MAILBOX BIN FULL),
BIN 2
MAILBOX SOLENOID 3
SENSOR
(MAILBOX BIN FULL),
BIN 1
SENSOR
(MAILBOX PASS-
THROUGH) 2
