Lexmark MS821 - Page 969

J27
J9
J6
J5
J24
J11
J1
J8
J3
J17
J2
J15
J35
J13
J14
J19
J4
J33
J21
J18

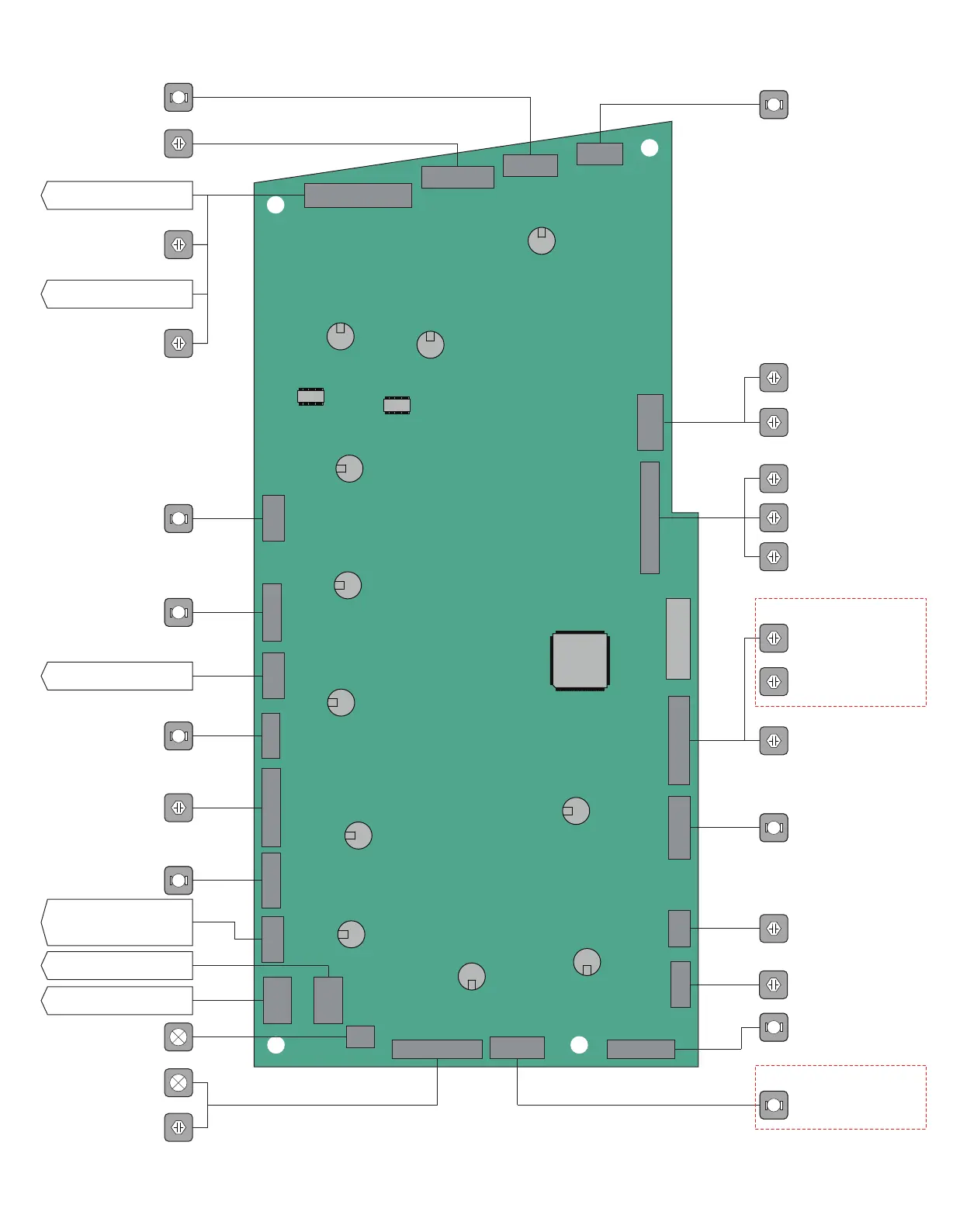

CARD POWER
J23
J22
J31
MOTOR
(SHPF RIGHT
TAMPER)
SENSOR
(SHPF BIN FULL)
M
MOTOR
(SHPF ELEVATOR)
M
SENSOR
(SHPF LEFT TAMPER)
SENSOR
(SHPF RIGHT TAMPER)
SENSOR
(SHPF STACK HEIGHT)
SENSOR
(SHPF DIVERTER
PLUNGER)
SENSOR
(SHPF PADDLE)
STAPLE, HOLE PUNCH
FINISHER
CONTROLLER BOARD
EJECTOR ASSEMBLY
SENSOR
(SHPF BIN CLAMP)
SENSOR
(SHPF EJECTOR)
SENSOR
(SHPF STAPLE
THROAT PAPER
PRESENT)
RIGHT STAPLE UNIT
LEFT STAPLE UNIT
M
MOTOR
(SHPF LEFT
TAMPER)
M
MOTOR
(SHPF STACK
HEIGHT)
HPU CONTROLLER
BOARD
M
MOTOR
(SHPF DIVERTER)
SENSOR
(HPU TRAILING
EDGE)
M
MOTOR
(EJECTOR)
STAPLE, HOLE PUNCH
FINISHER INTERFACE
CABLE
POWER IN
HPU BOARD POWER
M
MOTOR
(SHPF PADDLE)
STAPLE, HOLE
PUNCH FINISHER
BIN LED
SENSOR
(SHPF BIN PAPER
PRESENT )
M
MOTOR
(SHPF BIN CLAMP)
EJECTOR ASSEMBLY
STANDARD BIN LED
M
SHPF STAPLE
CARTRIDGE DOOR
CLOSE LIMIT
SWITCH, RIGHT
SHPF STAPLE
CARTRIDGE DOOR
CLOSE LIMIT
SWITCH, LEFT
MOTOR
(SHPF TRANSPORT)
SENSOR
(SHPF ELEVATOR,
BOTTOM)
SENSOR
(SHPF ELEVATOR,
TOP)
