L-INX User Manual 142 LOYTEC
Version 4.0 LOYTEC electronics GmbH

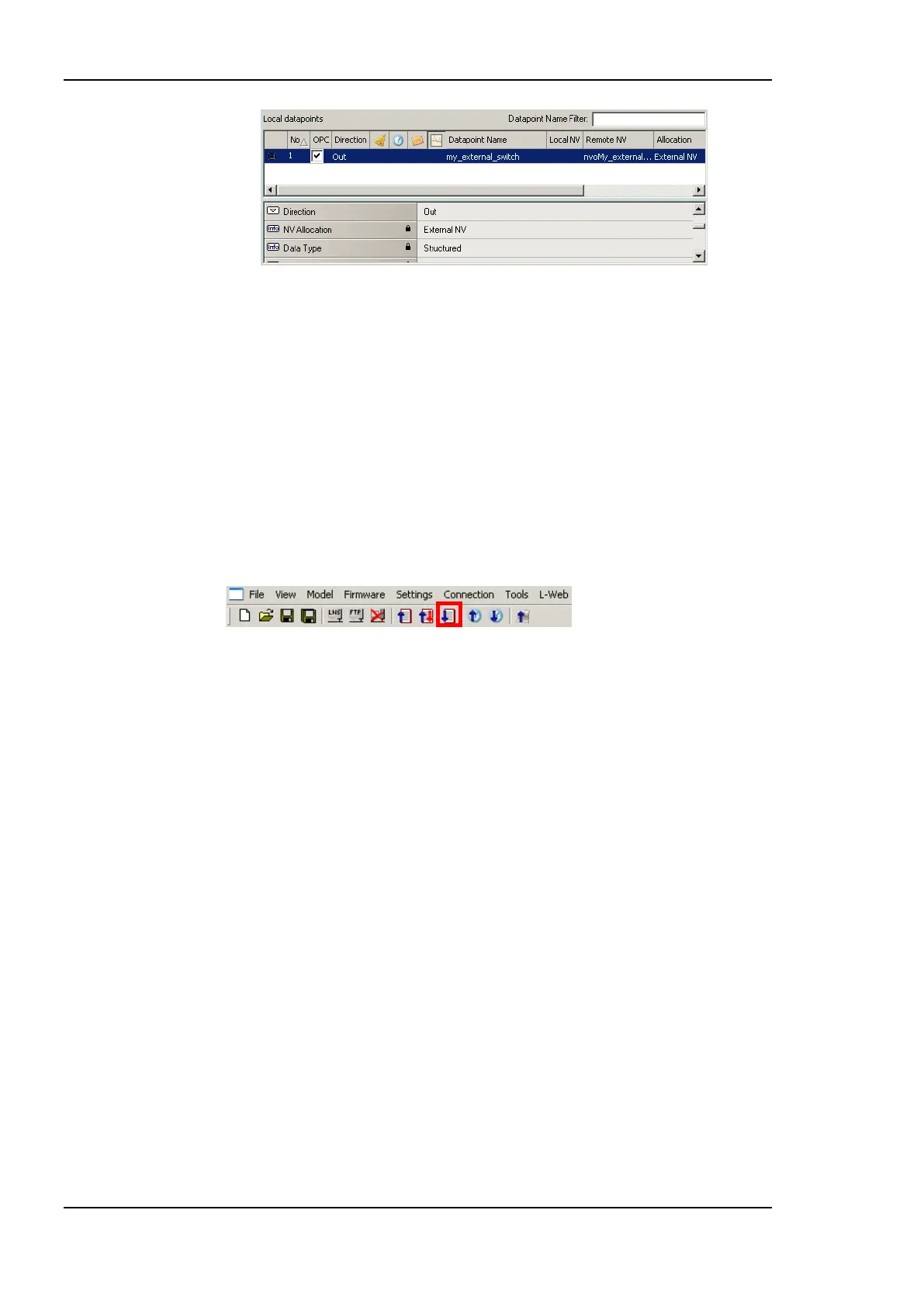

Figure 125: Manually created external NV in the port interface definition.
6.7.9 Configuration Download over LNS
After the data points have been configured, the configuration needs to be downloaded to the
device. For doing so, the device must be online. If the device is not yet connected to the
network, the configuration can be saved to a project file on the local hard drive.
If connected via LNS, and the NVs on the device are ―Static NV‖ or ―Dynamic NV‖, the
Configurator can create the bindings automatically. This behavior can be influenced by the
download dialog. When connected via LNS, the download procedure also manages the
device template upgrade in the LNS database, if the static NV interface has been changed.
To Download a Configuration
1. In the main connections window, click on the Download Configuration speed button
in the tool bar of the main connections window. This will open the configuration
download dialog as shown in Figure 113.
2. If no bindings shall be generated, deselect the Automatically create bindings
checkbox indicated by the red circle in Figure 126.
3. If the static NV interface has been changed, a new model number for the device needs
to be selected. This is necessary, as the static network interface of the device changes
on the CEA-709 network. The Configurator automatically selects a usable value, which
can be overridden in the field Model Number marked by the blue rectangle in Figure
113.
4. Click Start to start the download. Each of the actions is displayed in the Task List
section of the dialog. The current progress is indicated by the progress bar below.
5. When the download process has finished, a notification window appears, which has to
be acknowledged by clicking OK.
