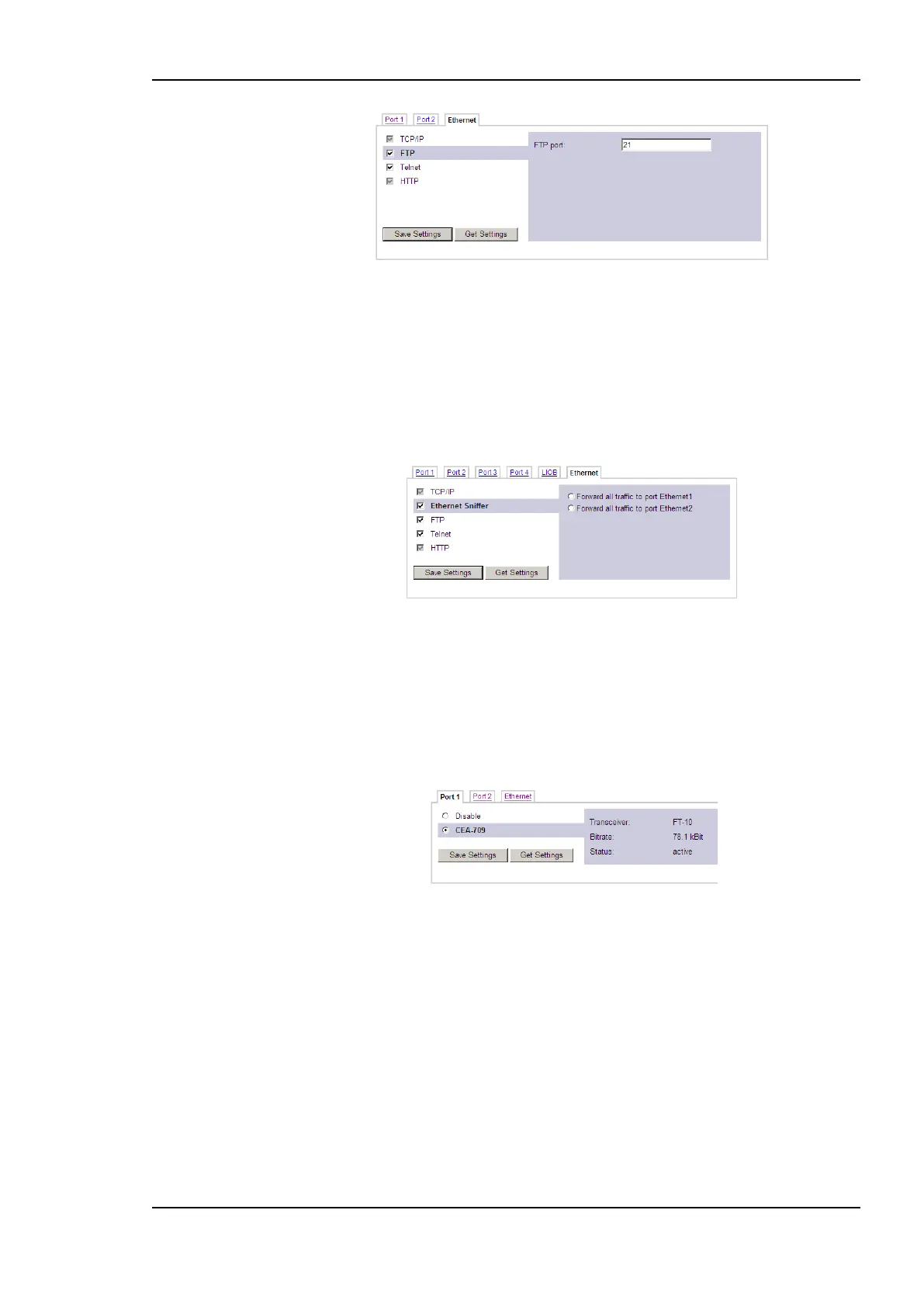

Figure 43: FTP server configuration on the Ethernet port.
4.2.5 Ethernet Sniffer
The L-INX models, which provide a built-in Ethernet switch/hub, can configure the switch
to operate as a hub. This allows connecting a laptop computer to the second Ethernet port
and running a packet sniffer on the device. To activate the sniffer mode, go to the Ethernet
port config and select the Ethernet Sniffer item as shown in Figure 44. In the settings box
select the Ethernet port, on which the traffic shall be forwarded to.
Figure 44: Activating the Ethernet Sniffer.
4.2.6 CEA-709 Configuration
The CEA-709 protocol can be enabled on the device‘s ports Port1, Port2, etc. if available.
To enable it, click the CEA-709 radio button as shown in Figure 45. Note, that depending
on the device model, other protocols on the same port will be disabled in this case. The
protocol settings box on the right-hand side displays the current transceiver settings.
Figure 45: CEA-709 Configuration Page.
4.2.7 CEA-852 Device Configuration
The CEA-852 protocol is only available on the Ethernet port. To enable CEA-852 on the
device, select the CEA-852 (CEA-709 over IP) checkbox on the Ethernet tab of the port
configuration page. Please note that on device models without a router or a proxy, the
CEA-709 protocol on other ports will be disabled (e.g., LINX-100).
The CEA-852 protocol settings are displayed in the settings box on the right-hand side as
shown in Figure 46. Typically, the device is added to an IP channel by entering the relevant
information on a configuration server. The configuration server then contacts the CEA-852
device of the L-INX and sends its configuration.
