2 Quick-Start Guide
This chapter shows step-by-step instructions on how to configure the LINX-20X for a
simple OPC server application.
2.1 Hardware Installation
Connect power (12-35 VDC or 12-24 VAC), the MS/TP network, and the Ethernet cable as
shown in Figure 1. More detailed instructions are shown in Chapter 3.
Important: Do not connect terminal 17 with Earth-ground!

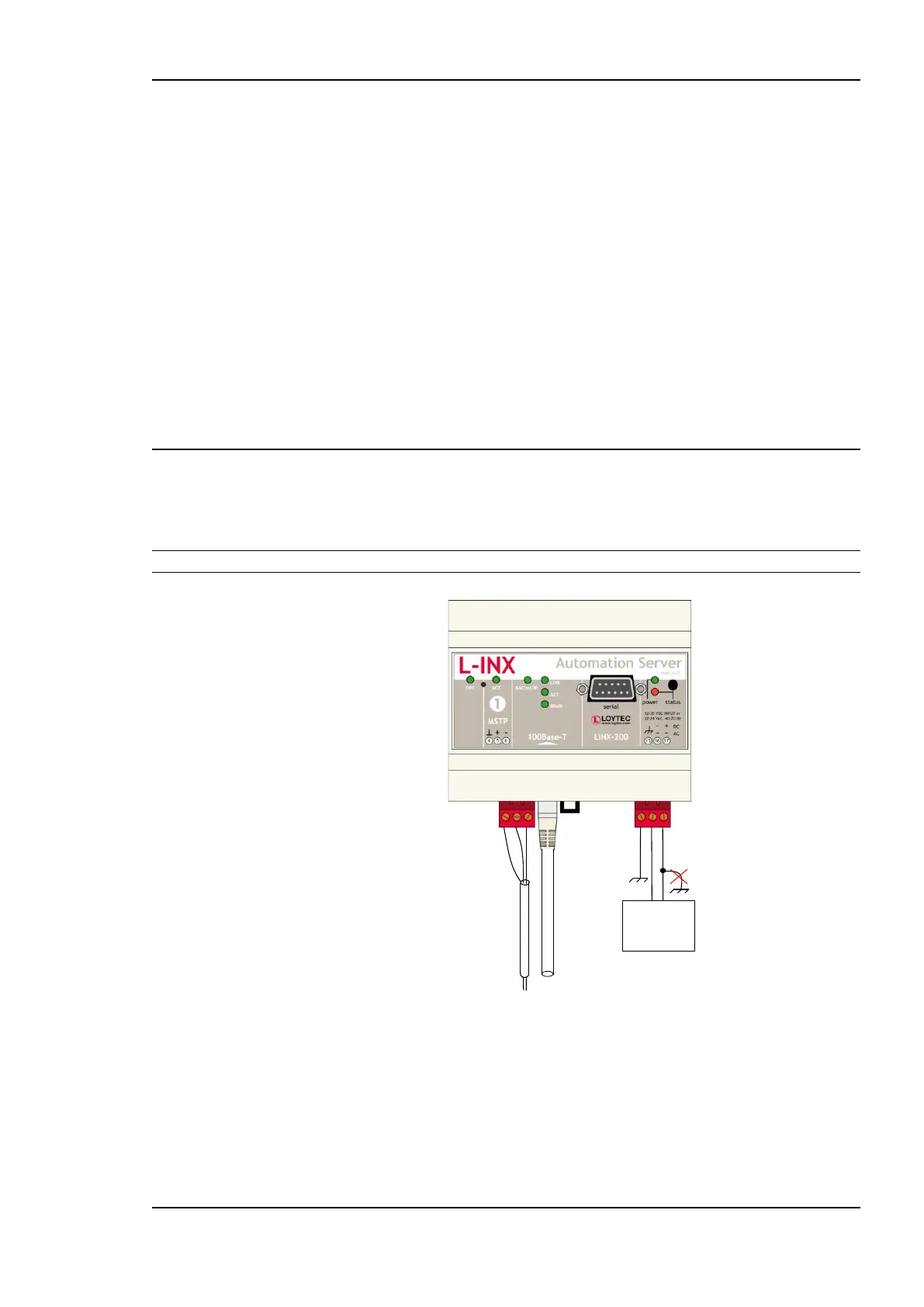

Figure 1: Basic Hardware Installation.
If the LINX-20X is connected to a BACnet MS/TP network, the MS/TP network segment
must be properly terminated with an LT-04 network terminator connected at each of the two
ends of the segment media.
