L-INX User Manual 79 LOYTEC
Version 4.0 LOYTEC electronics GmbH

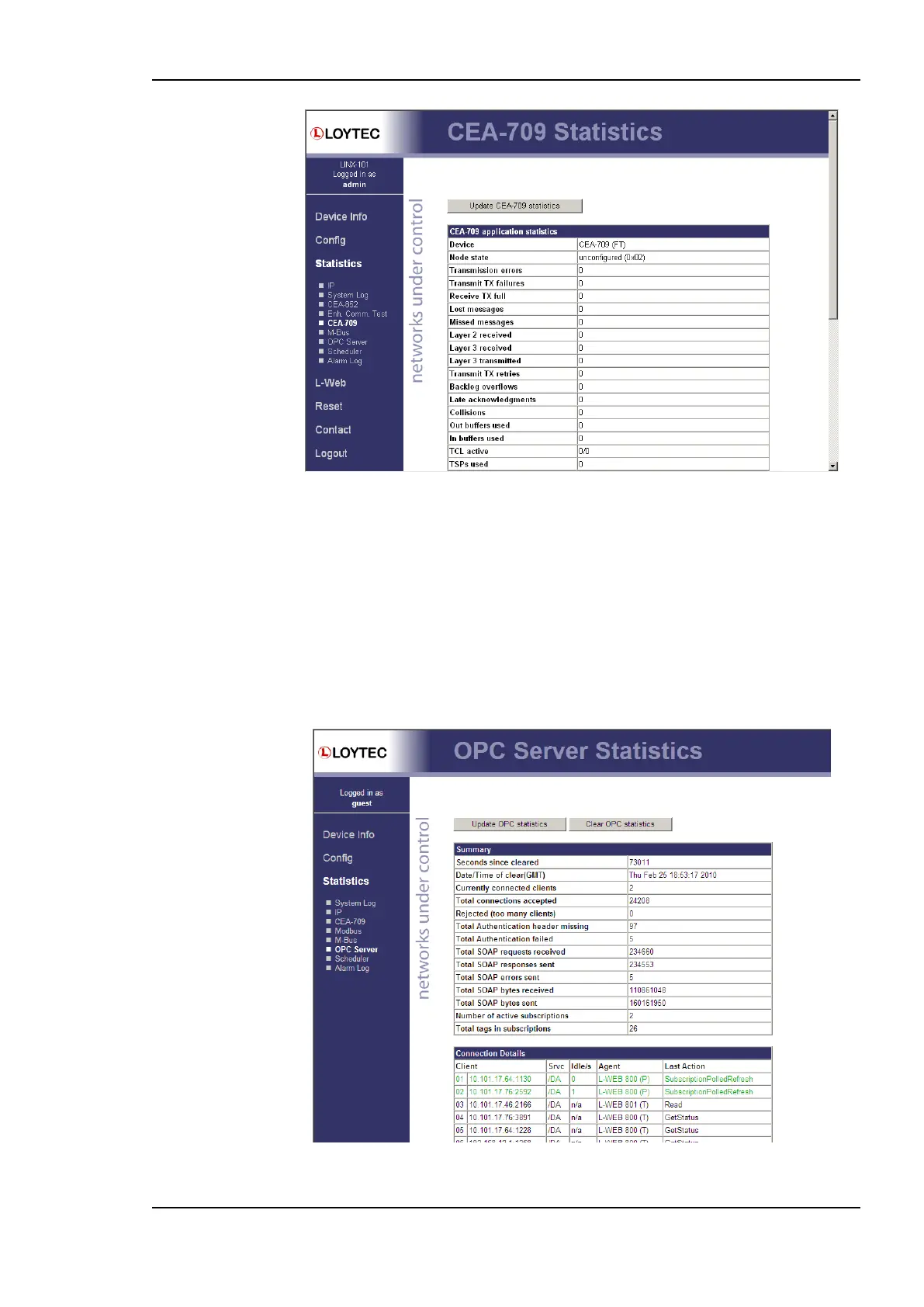

Figure 68: CEA-709 Statistics Page.
4.3.6 OPC Server Statistics Page
The OPC server statistics page shows statistics data, which contains information on
currently and previously connected clients. An example list of OPC clients is shown in
Figure 69. Clicking on the Update OPC statistics button retrieves the current statistics.
The Summary table on the top of the page displays the number of currently connected
clients. These clients occupy TCP connections. The next line specifies the total number of
accepted client connections since the device is running. The figure for rejected connections
can be used to detect situations, where too many clients try connecting at the same time.
Figure 69: OPC Server Statistics Page.
