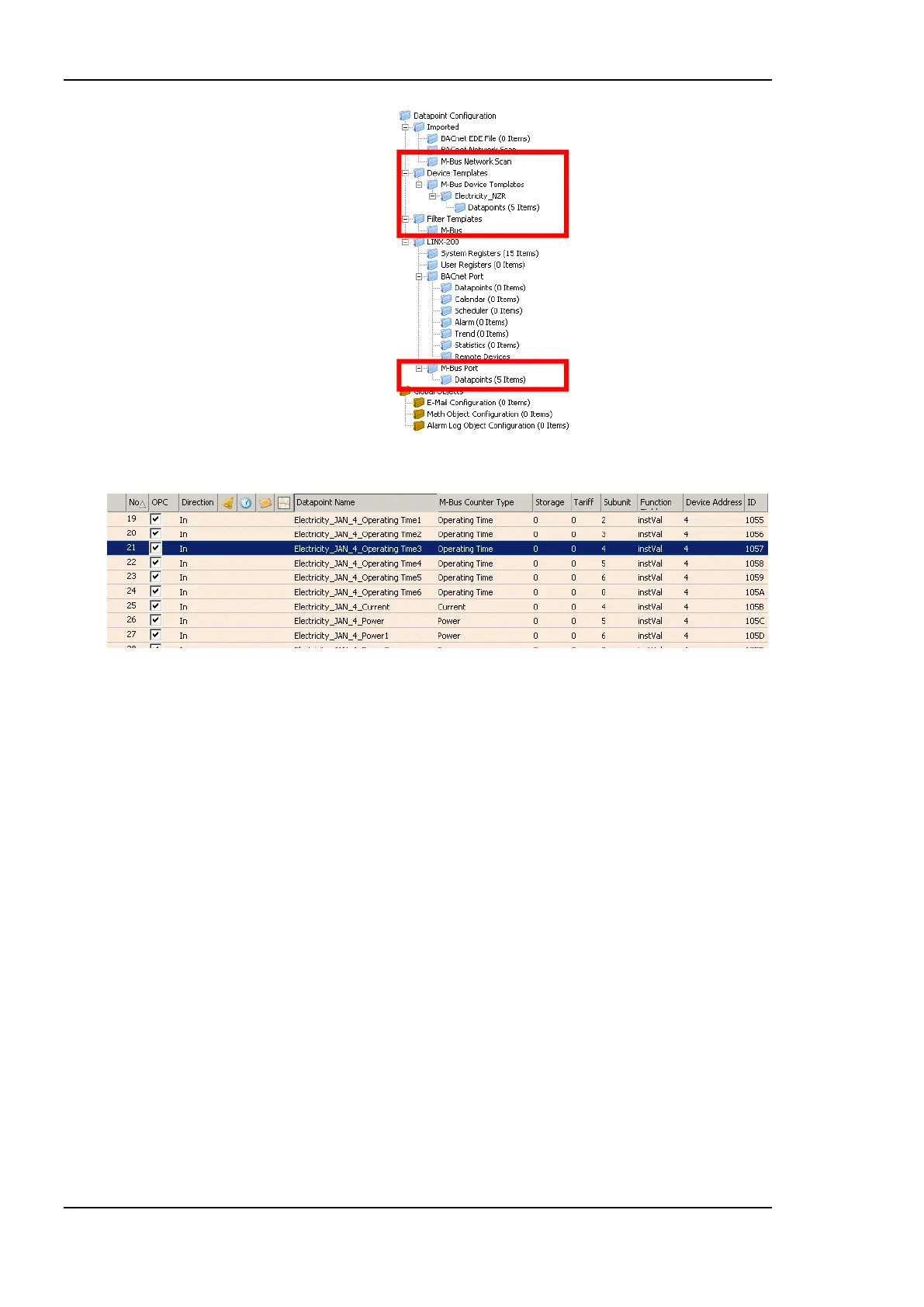

Figure 168: Data Point Manager Dialog with M-Bus folder list
Figure 169: Datapoint Manager Dialog with M-Bus Data Point List.
10.5.3 Folder List
At the left is a list of folders which is used to sort the available data objects by their
category. There are a number of predefined M-Bus folders available. All other folders are
described in section 6.2.1:
Imported: This folder has a number of sub-folders for different import methods:
o M-Bus Network Scan: This folder holds data points scanned online from an
attached M-Bus network. When scanning an M-Bus device, a subfolder is
created under M-Bus Network Scan. The name of this subfolder is generated
automatically from the information of the scanned device. Additionally under
the device sub-folder a data point folder is created.
Device Templates: This folder contains created data point templates for the different
technologies.
o M-Bus Device Templates: This folder contains a sub-folder for each device,
which is imported from an M-Bus device template. This device folder also
contains a sub-folder with the data points specified in the template. Data
points can be added to the folder. Additionally suitable data objects can be
created for the use on the device by selecting the Use on Device option.
Filter templates: This folder contains filter templates for scanned M-Bus devices
o M-Bus: This folder contains a folder with data points for each created filter
template.
LINX-XXX: This is the device folder (see Section 6.2.1). For M-Bus an additional
port folder exists:
