L-INX User Manual 148 LOYTEC
Version 4.0 LOYTEC electronics GmbH

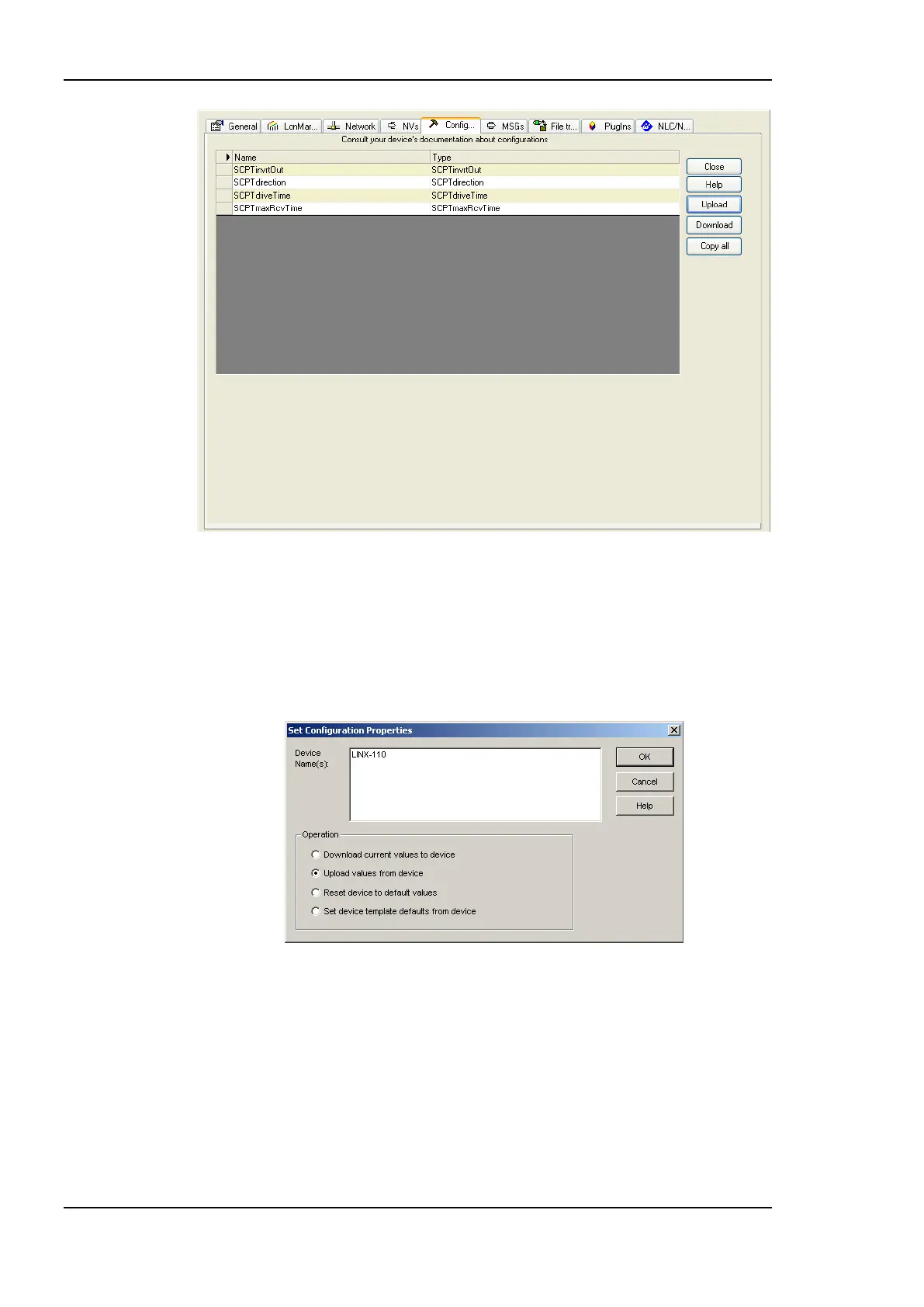

Figure 129: Configuration Tab for Configuration Properties in NL220.
To Synchronize CPs in LonMaker TE
1. Right-click on a device object and select Commissioning Resync CPs… from the
context menu.
2. This opens the dialog shown in Figure 130.
Figure 130: Set Configuration Properties in LonMaker TE.
3. In this dialog select the radio button Upload values from device in the Operation
group box. To use the current settings of the device as default values for new devices,
select Set device template defaults from device.
4. Execute the operation by clicking the OK button.
6.8.5 Working with UNVTs, UCPTs
This device supports user-defined type, including user-defined network variable types
(UNVTs) and user-defined configuration property types (UCPTs). In order to interpret the
