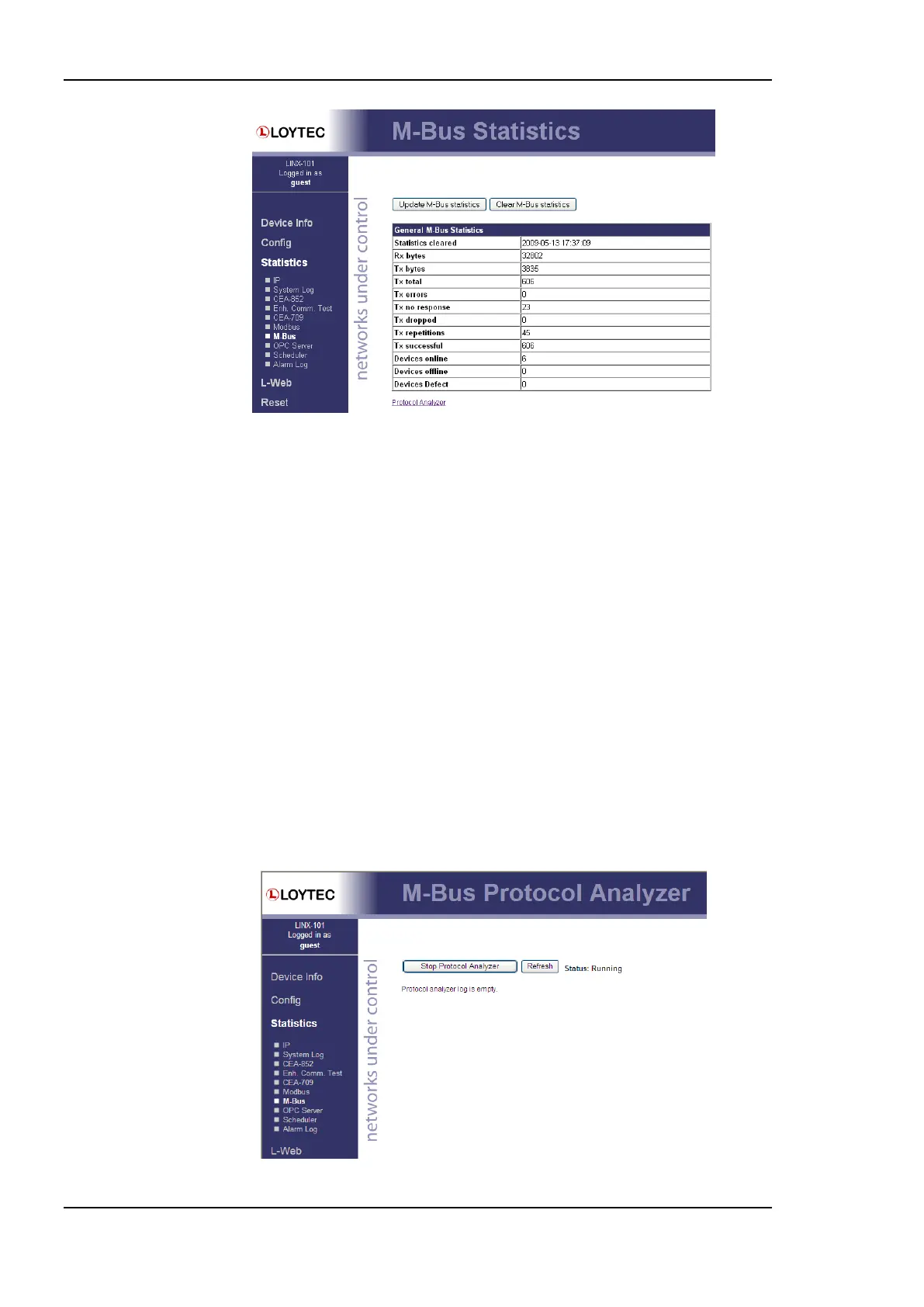

Figure 166: Statistics of the M-Bus port.
The following information is available:
Rx bytes: number of bytes received
Tx bytes: number of bytes sent
Tx total: total number of transmissions
Tx errors: number of errors during a transmission
Tx no response: number of transmissions without a response
Tx dropped: number of dropped transmissions (in case of an error, device responses or
transmissions can be dropped)
Tx repetitions: number repeated messages
Tx successful: number of successful transmissions
Devices online: number of devices which are currently online
10.4.4 M-Bus Protocol Analyzer
By activating the link Protocol Analyzer (available in the M-Bus statistics tab), the protocol
analyzer page is shown as displayed in Figure 167.
Figure 167: M-Bus protocol analyzer.
