Important: When using 2-wire MS/TP, earth ground must be connected to both terminal 15 and 16
(see Figure 33a). Never connect terminal 17 to earth ground!
(a) (b)

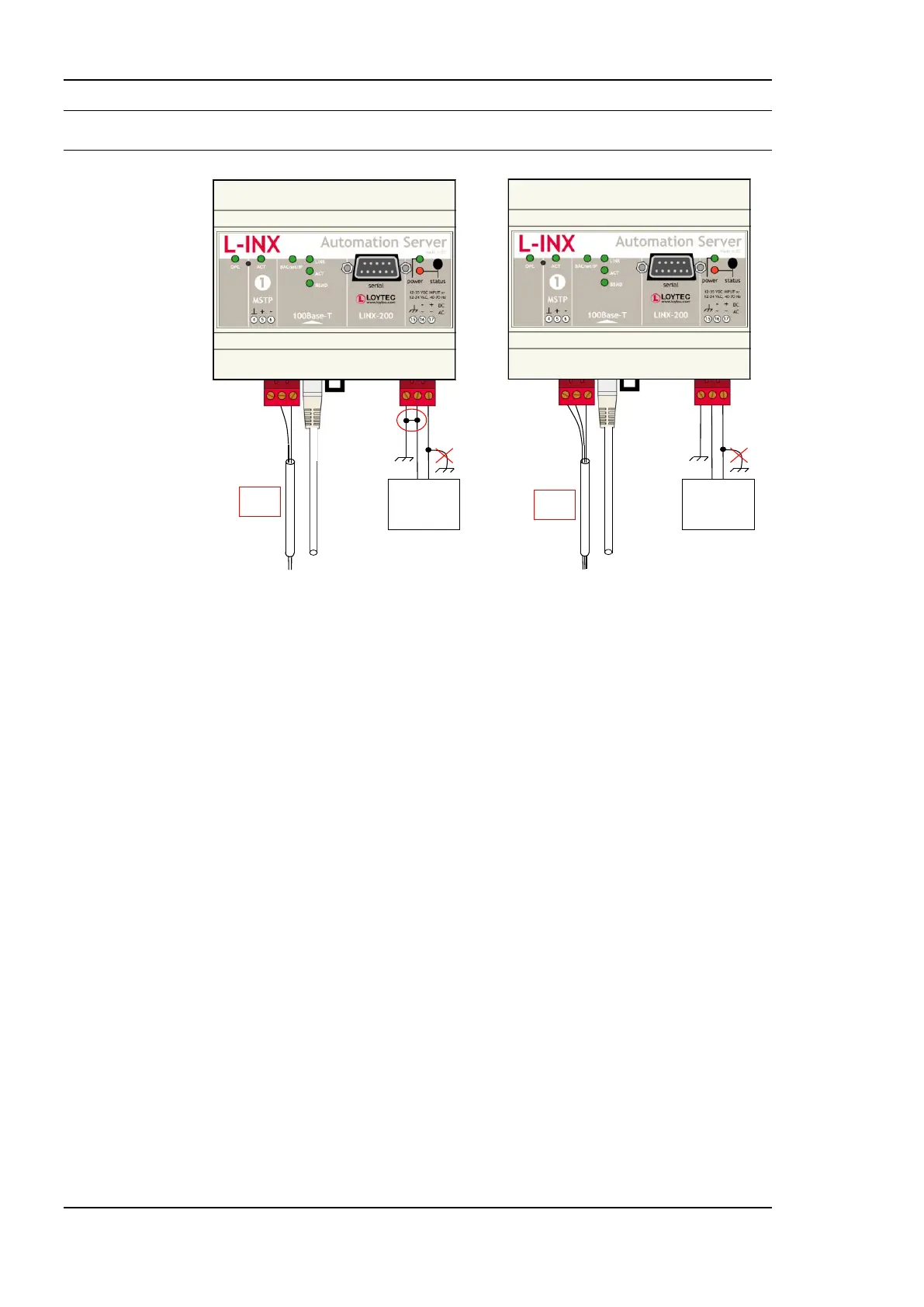

Figure 33: Connecting the LINX-20X/21X: (a) 2-wire MS/TP, (b) 3-wire MS/TP.
3.9.3 LINX-12X/15X
The terminals and wiring information for the LINX-12X/15X can be seen in Figure 34. The
CEA-709 network segment connected to the LINX-10X/11X needs to be terminated
according to the rules found in the specification of the transceiver (see Section 14.1).
