 Date Code, which defines the production week and year,
 Serial number with bar-code (Ser#),
 MAC address of Ethernet port with bar-code (MAC1).

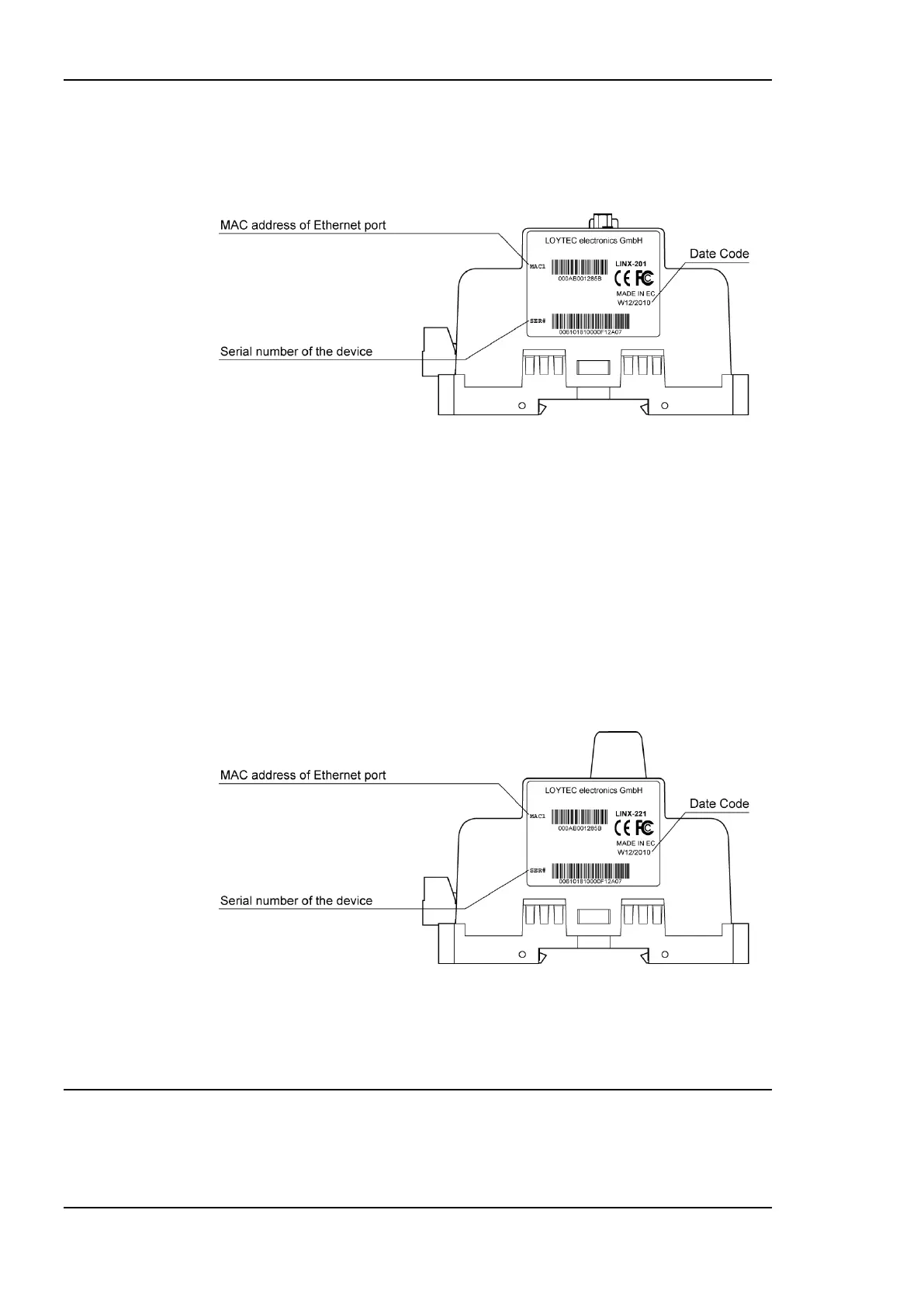

Figure 28: LINX-20X/21X product label.
Unless stated otherwise, all bar codes are encoded using ―Code 128‖. An additional label is
also supplied with the L-INX for documentation purposes.
3.2.4 LINX-22X
The product label on the side of the LINX-22X contains the following information (see
Figure 29):
 L-INX order number with bar-code (e.g., LINX-221),
 Date Code, which defines the production week and year,
 Serial number with bar-code (Ser#),
 MAC address of Ethernet port with bar-code (MAC1).
Figure 29: LINX-22X product label.
Unless stated otherwise, all bar codes are encoded using ―Code 128‖. An additional label is
also supplied with the L-INX for documentation purposes.
3.3 Mounting
The device comes prepared for mounting on DIN rails following DIN EN 50 022. The
device can be mounted in any position. However, an installation place with proper airflow
