Figure 26: LINX-10X/11X product label.
Unless stated otherwise, all bar codes are encoded using ―Code 128‖. An additional label is
also supplied with the L-INX for documentation purposes. A virtual ID (VID) is a Node ID
on the IP channel.
3.2.2 LINX-12X/15X

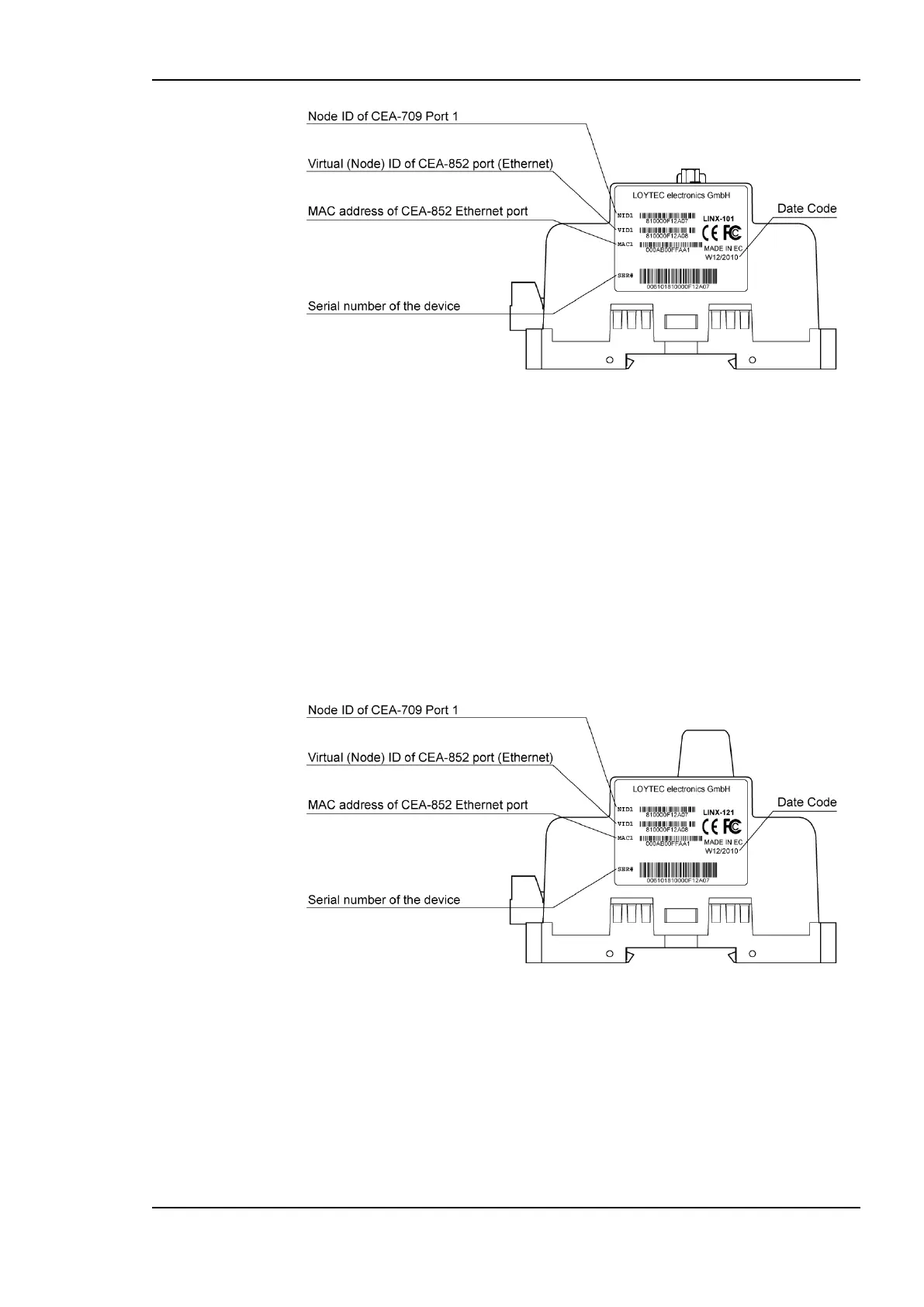

The product label on the side of the LINX-12X/15X contains the following information (see
Figure 27):
 L-INX order number with bar-code (e.g., LINX-120, LINX-151),
 serial number with bar-code (Ser#),
 unique node ID and virtual ID of each port (NID1, VID1) with bar-code,
 Ethernet MAC ID with bar-code (MAC1).
Figure 27: LINX-12X/15X product label.
Unless stated otherwise, all bar codes are encoded using ―Code 128‖. An additional label is
also supplied with the L-INX for documentation purposes. A virtual ID (VID) is a Node ID
on the IP channel.
3.2.3 LINX-20X/21X
The product label on the side of the LINX-20X/21X contains the following information (see
Figure 28):
 L-INX order number with bar-code (e.g., LINX-200, LINX-211),
